Replacing front axle support (Cooper Convertible)

Special tools required:

• 31 5251

Preliminary work needed:

• Remove front AXLE COMPLETELY .

Removal:

Loosen screws (1).

Remove heat shield (2).

Courtesy of BMW OF NORTH AMERICA, INC.

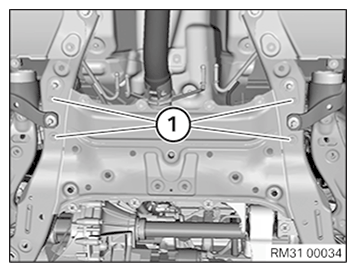

Release screws (1) from anti-roll bar.

Courtesy of BMW OF NORTH AMERICA, INC.

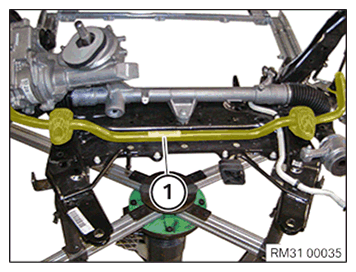

Remove anti-roll bar (1) with retainer from front axle.

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Remove steering gear (2).

Courtesy of BMW OF NORTH AMERICA, INC.

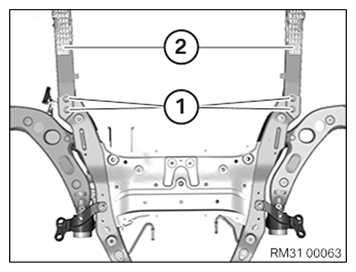

Loosen screws (1).

Remove deformation element adapter (2) from front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

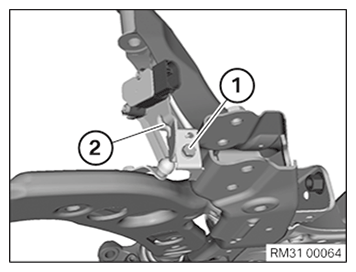

Only for right ride height sensor:

Release screw (1).

Release ride height sensor holder (2) from front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

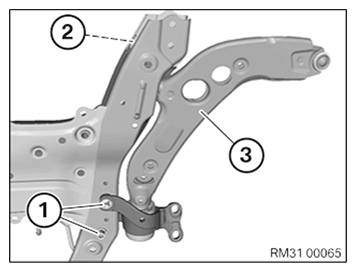

Loosen screws (1).

Release screw (2).

Remove wishbone on left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

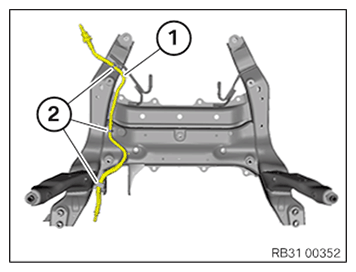

Only for gasoline engines (not for PHEV)

Release clips and cable clip (2).

Remove purge air line (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Only for gasoline engines (not for PHEV)

Secure the purge air line (1) to the new front subframe using the clips and the cable clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

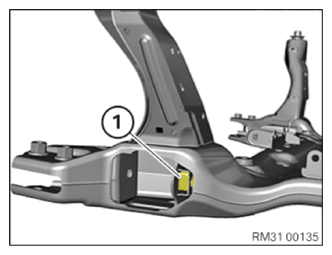

Replace the square nut (1).

Parts  : Square nut

Courtesy of BMW OF NORTH AMERICA, INC.

Place new front axle support on special tool 31 5 251 and secure with luggage strap.

Align wishbone (3).

Replace screw (2).

Parts  : Screw

Screw in screw (2).

• Do not yet tighten screw (2)!

Tighten down screws (1).

Tightening torque 31 12 3AZ .

Tighten screw (2).

Tightening torque 31 12 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Only for right ride height sensor:

Align ride height sensor holder (2) to front axle support.

Tighten screw (1).

Tightening torque 37 14 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Align deformation element adapter (2) to front axle support.

Tighten down screws (1).

Tightening torque 31 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

The seal (1) of the electromechanical steering gear (EPS) must always be replaced!

Remove gasket (1).

Clean surface on steering gear.

Replace gasket (1).

Parts  : Gasket

Position and bond the new gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Position steering gear (2).

Replace screws (1).

Parts  : Screws

Tighten down screws (1).

Tightening torque 32 00 1AZ .

Attention!

The bores for the steering gear screw connection in the front subframe do not have any thread.

New self-tapping screws must be used.!

Courtesy of BMW OF NORTH AMERICA, INC.

Place anti-roll bar (1) with retainer on front axle and align.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws (1).

Parts  : Screws

Tighten screws (1) on anti-roll bar.

Tightening torque 31 35 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Align heat shield (2).

Replace screws (1).

Parts  : Screws

Tighten down screws (1).

Tightening torque 32 00 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install FRONT AXLE .
• Perform either KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH RIDE HEIGHT MEASUREMENT WITHOUT LOADING THE VEHICLE .
