Removing and installing/replacing control unit/module for seat heating (Cooper Convertible)

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with NOTES on protection against electrostatic discharge (ESD protection).

Removal:

NOTE: To facilitate installation/removal of control unit, shift seat upwards and to the rear fully.

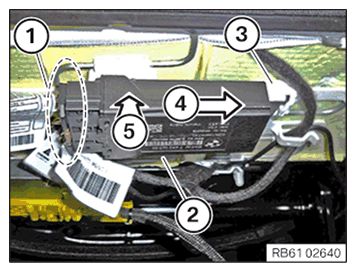

Disconnect all connectors (1).

Press control unit/module for seat heating (2) first in arrow direction (4) and then simultaneously in arrow direction (5) and feed out of the plastic holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed control unit/module for seat heating (2) into the plastic holder (3) first in arrow direction (4) and then engage in arrow direction (5).

Connect all connectors (1).

NOTE: Make sure control unit/module for seat heating (2) is correctly engaged.

Courtesy of BMW OF NORTH AMERICA, INC.
