Removing and installing/replacing interior antenna for Comfort Access (front storage compartment) (Cooper Convertible)

Preliminary work needed:

• Remove complete CENTER CONSOLE .

Removal:

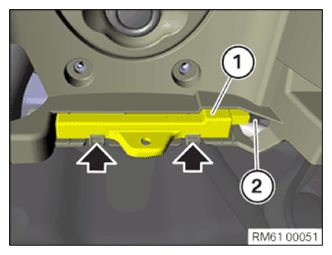

Release detents on holder.

Remove interior antenna for Comfort Access (1) from holder.

Unlock and disconnect connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Connect connector (2).

Join interior antenna for Comfort Access (1) in holder.

Installation note:

Ensure interior antenna for Comfort Access (1) engages correctly in holder.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install complete CENTER CONSOLE .
