Removing and installing (replacing) telematics platform, low (Cooper Convertible )
WARNING: This page is about a different variant/trim than selected.
Preliminary work needed:
- Remove GLOVE COMPARTMENT .
Removal:

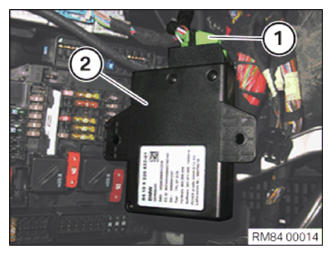

Release detents and pull telematics platform, low (1) out of holder (2).
Disconnect connector (1).
Remove telematics platform, low (2).
Installation:
Connect connector (1) to telematics platform, low (2).
NOTE:
Ensure correct locking.
Slide telematics platform, low (1) into holder (2).
NOTE:
Ensure correct locking.
Required follow-up work:
- Install GLOVE COMPARTMENT .
