24 61 005 Removing and installing or replacing automatic transmission control module (Cooper JCW)

Preliminary work needed:

• Clamp off BATTERY GROUND LEAD .
• Remove INTAKE SILENCER HOUSING .

Removal  :

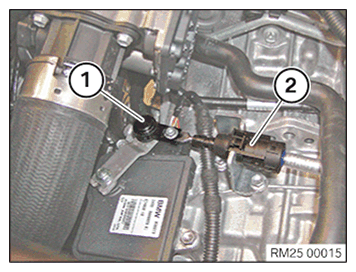

Release ball socket (1) from ball pivot.

Release the cable (2) from the support angle.

Courtesy of BMW OF NORTH AMERICA, INC.

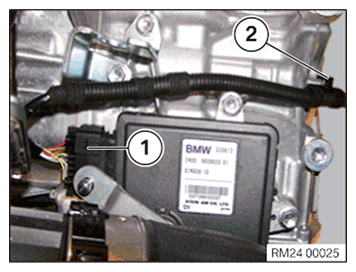

Unlock connector (1).

Release clamp (2) with wiring harness from transmission and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

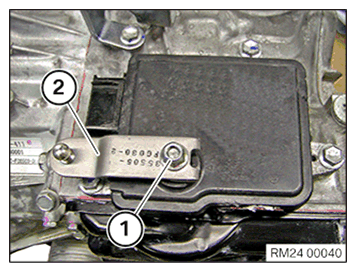

Slacken nut (1).

Remove lever (2).

Courtesy of BMW OF NORTH AMERICA, INC.

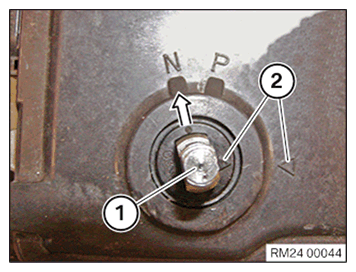

Before removal of the EGS, lever (1) must point towards "N".

The arrows (2) must point to each other.

Courtesy of BMW OF NORTH AMERICA, INC.

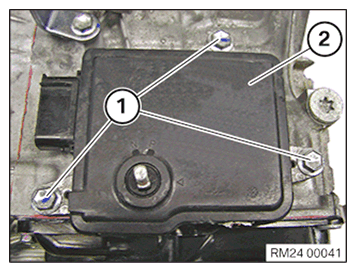

Unscrew the screws (1).

Remove the EGS (2).

Courtesy of BMW OF NORTH AMERICA, INC.

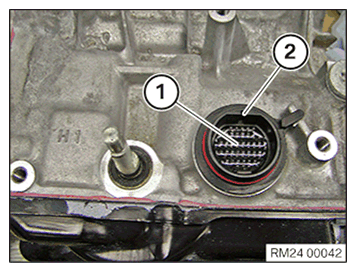

Pins (1) of sealing sleeve (2) must not be taped.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation  :

Before installation of the EGS, lever (1) must point towards "N".

The arrows (2) must point to each other.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the EGS (2).

Tighten down screws (1).

Tightening torque 24 61 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install lever (2).

Tighten nut (1).

Tightening torque 24 61 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Press in cable (2) into the support angle.

Ensure cable audibly engages.

Press on ball socket (1) onto ball pivot.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install INTAKE SILENCER HOUSING .
• Connect BATTERY GROUND LEAD .

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
