65 82 300 Removing and installing (replacing) Touchbox controller control unit

Preliminary work needed:

• Remove LEFT SIDE TRIM PANEL .

REMOVAL:

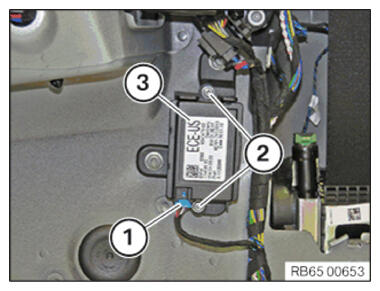

Disconnect connector (1).

Unscrew the screws (2).

Remove control unit (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING AND CODING .

INSTALLATION:

Position control unit (3).

Tighten down screws (2).

Join the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install LEFT SIDE TRIM PANEL .
