61 35 278 Removing/installing/replacing Body Domain Controller (BDC)

Preliminary work needed:

• Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT .
• Remove GLOVE COMPARTMENT .
• Remove FOOTWELL SIDE TRIM PANEL ON A-PILLAR ON RIGHT .

Removal:

Courtesy of BMW OF NORTH AMERICA, INC.

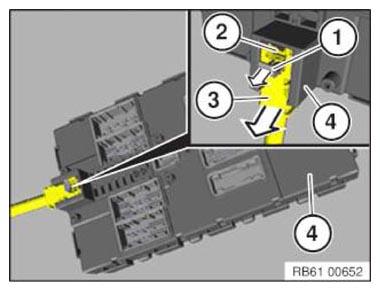

Unlock the positive battery cable connector:

1. Loosen lock (1) in arrow direction.
2. Unfasten catch (2) on positive battery lead connector (3).
3. Remove positive battery lead connector (3) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

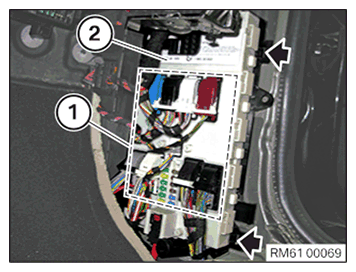

Unlock and disconnect all connectors (1) in marked area.

Release detents and pull control unit BDC (2) to the side out of holder.

Installation:

Courtesy of BMW OF NORTH AMERICA, INC.

Join control unit BDC (2) to the side in holder. Connect all connectors (1) in marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

Lock positive battery cable connector:

1. Join positive battery cable connector (3) against arrow direction.
2. Lock detent (2) to positive battery cable connector (3).
3. Close lock (1) against arrow direction.

When replacing the BDC:

Carry out PROGRAMMING/CODING .

Required follow-up work:

• Install FOOTWELL SIDE TRIM PANEL ON A-PILLAR ON RIGHT .
• Install GLOVE COMPARTMENT .
• Connect BATTERY CABLE NEGATIVE TERMINAL .
