Installing the intake adjuster
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Installing the intake adjuster

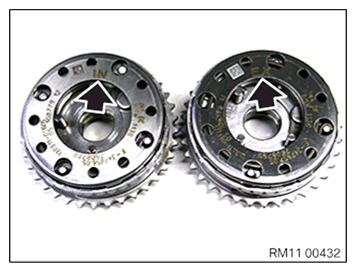

Lay out the intake adjuster marked with IN (arrow).
Courtesy of BMW OF NORTH AMERICA, INC.

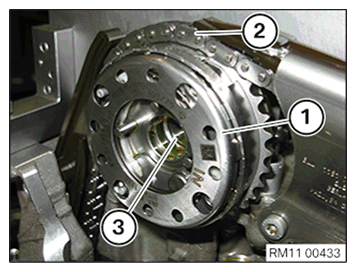

Feed in intake adjuster (1) in the timing chain (2) and position on the intake camshaft (3).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
