Installing all intermediate levers
NOTE:
TECHNICAL INFORMATION
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring.
For further information on possible combinations, see the applicable BMW parts catalogue.
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring.
For further information on possible combinations, see the applicable BMW parts catalogue.

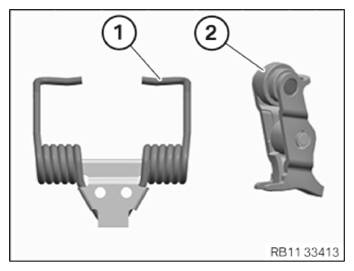

- Version with a torsion spring with an L-shaped contour and a suitable intermediate lever:
Use torsion spring (1) with an L-shaped contour only in conjunction with a suitable intermediate lever (2).

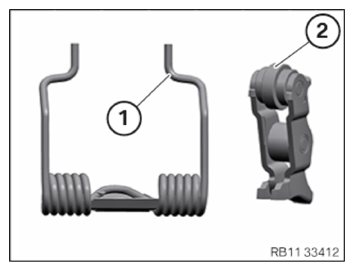

- Version with a torsion spring with an S-shaped contour and a suitable intermediate lever:
Use torsion spring (1) with an S-shaped contour only in conjunction with a suitable intermediate lever (2).
NOTE:
The description is provided only at one component. The procedure is the same for all other components.

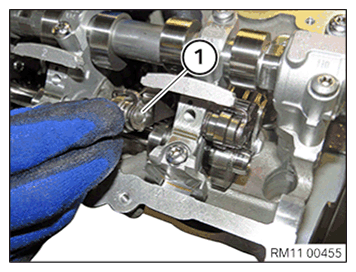

- Install the intermediate lever (1).
Follow-up work
- Refer to INSTALLING ALL GATES .
- Refer to CHECKING INSTALLATION POSITION OF ROLLER CAM FOLLOWERS .
- Refer to INSTALLING TORSION SPRINGS .
- Refer to INSTALLING CYLINDER HEAD COVER .
- Refer to INSTALLING BOTH ACTUATORS .
- Refer to PREPARING THE INJECTORS FOR INSTALLATION .
- Refer to INSTALLING INJECTORS .
- Refer to PREPARING FOR THE INSTALLATION OF THE HIGH PRESSURE PUMP .
- Refer to INSTALLING HIGH PRESSURE PUMP .
- Refer to INSTALLING THE HIGH-PRESSURE LINE BETWEEN THE HIGH-PRESSURE RAIL AND THE HIGH-PRESSURE PUMP .
- Refer to INSTALLING FUEL DELIVERY LINE .
- Refer to INSTALLING THE IGNITION COILS .
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALLING INTAKE PORT .
- Refer to INSTALLING SECOND UPPER FIREWALL .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
- Refer to INSTALLING THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT RIGHT WHEEL .
- Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE RIGHT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE LEFT WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE BATTERY COVER .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
