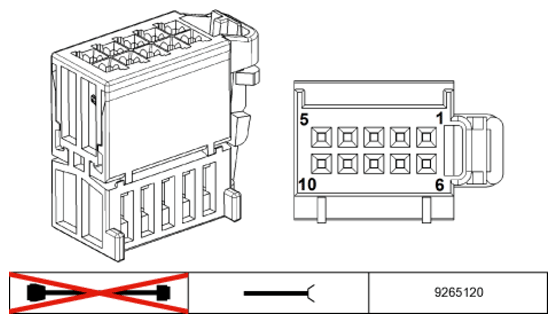

Trailer Module A255*3B Connector End View
Pin Assignments At Plug Connector A255*3B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | E | Activation, brake light | A258 Body Domain Controller Module 3 |
| 3 | E/A | Body CAN bus signal | Terminating resistor |
| 4 | E/A | Body CAN bus signal | Terminating resistor |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | E | Activation, flashing indicator lamp | A258 Body Domain Controller Module 3 |
| 9 | -- | Not used | |
| 10 | -- | Not used |
