Control Units

CONTROL UNITS LOCATION

Component Location

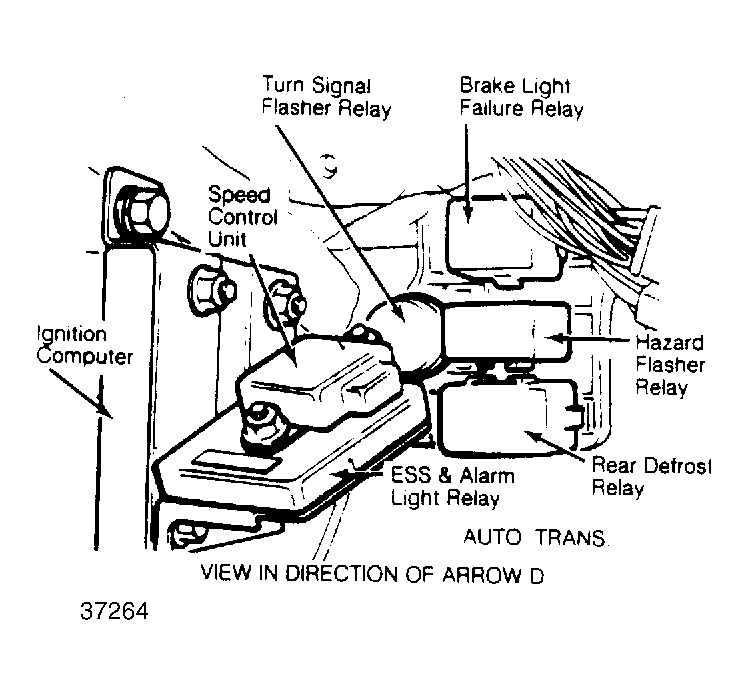

Ignition Computer Below left side of dash. See Figure .
Electronic Control Transmission (ECT) Computer Below left side of dash.
Speed Control Unit Under left side of dash. See Figure & Figure .
