Diagnostic Code-To-Component Menu

DIAGNOSTIC CODE CHART

Code Number	Diagnostic Item
1	Oxygen Sensor & Computer
2	Ignition Pulse
3	Airflow Sensor
4	Pressure Sensor
5	Throttle Position Sensor
6	ISC Motor Position Sensor
7	Coolant Temperature Sensor
8	(1) Vehicle Speed Sensor

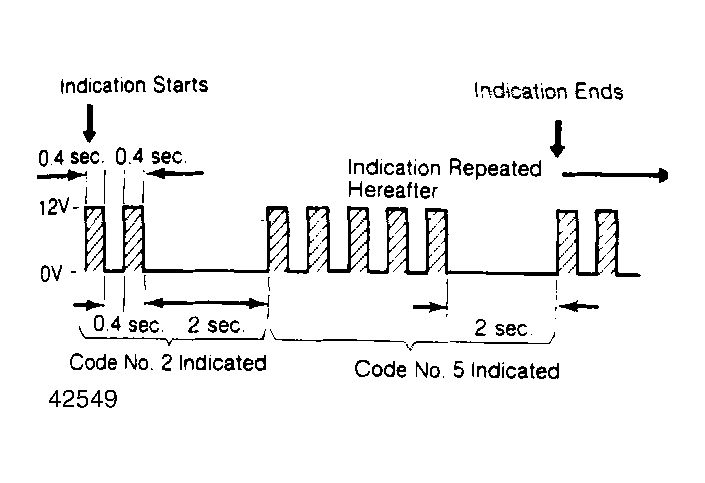

Fig 1: Self-Test Indication Chart Chart illustrates code 2 and 5 as being abnormal.

G42549
