Ignition System - Electronic: Overhaul: Reassembly

Reverse removal procedure. Inspect cap and rotor for cracks and deposits on inside surfaces. Ensure breaker assembly is clean and no metallic dust or filings are present. Use new distributor drive gear roll pin.

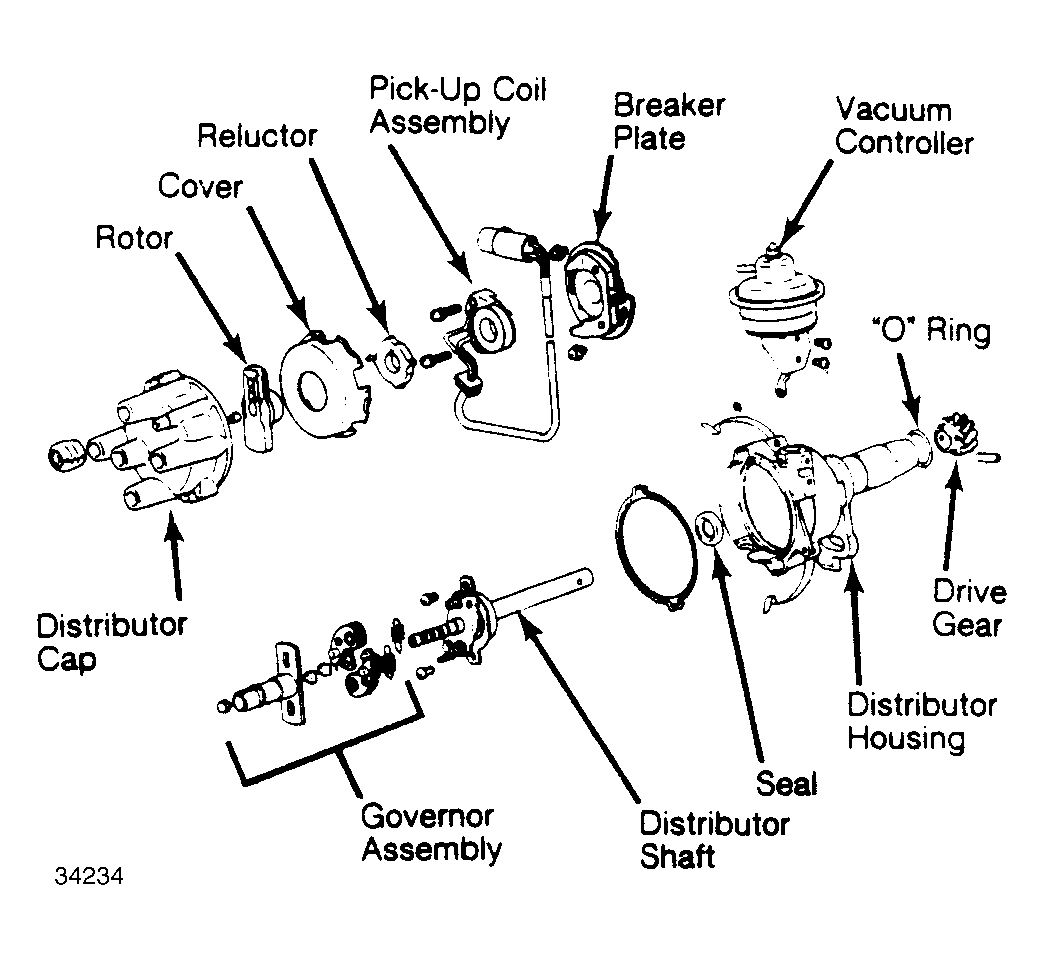

Fig 1: Exploded View of Distributor Used W/1.5L, 2.0L & 2.4L Engines

Fig 2: Exploded View of Distributor Used W/1.6L & 2.6L Engines Note location of governor springs.

Fig 3: Exploded View of Distributor Used W/1.8L Engine Note location of governor springs.
