Chrysler Motors

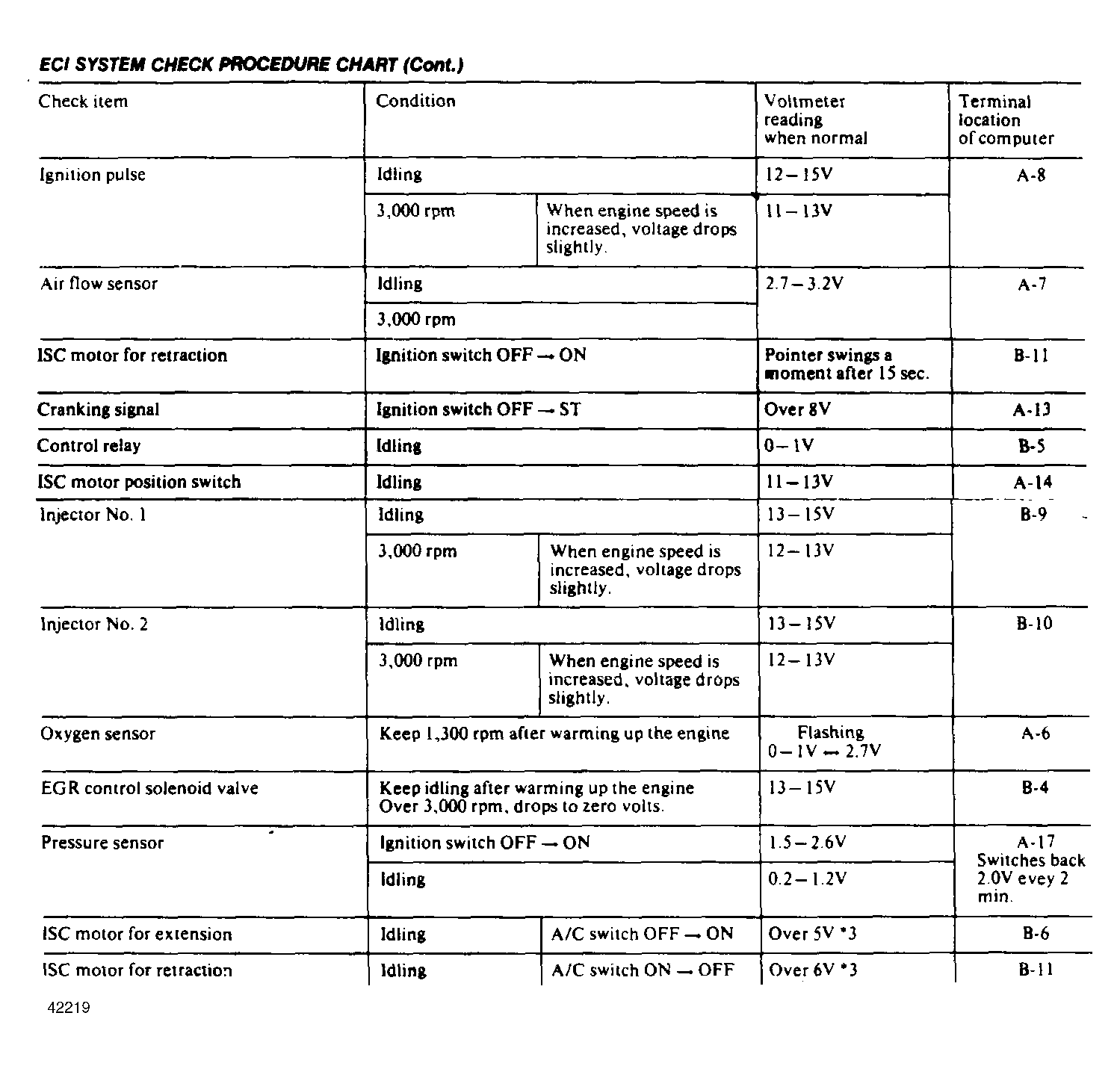

With voltmeter, measure the voltage at the appropriate pin connectors. See Figure . Check voltage standards of each terminal as specified in ECI SYSTEM CHECK CHARTS  at the end of this article. Make sure ignition switch, vehicle operation and conditions are observed as called out in procedure.
