Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

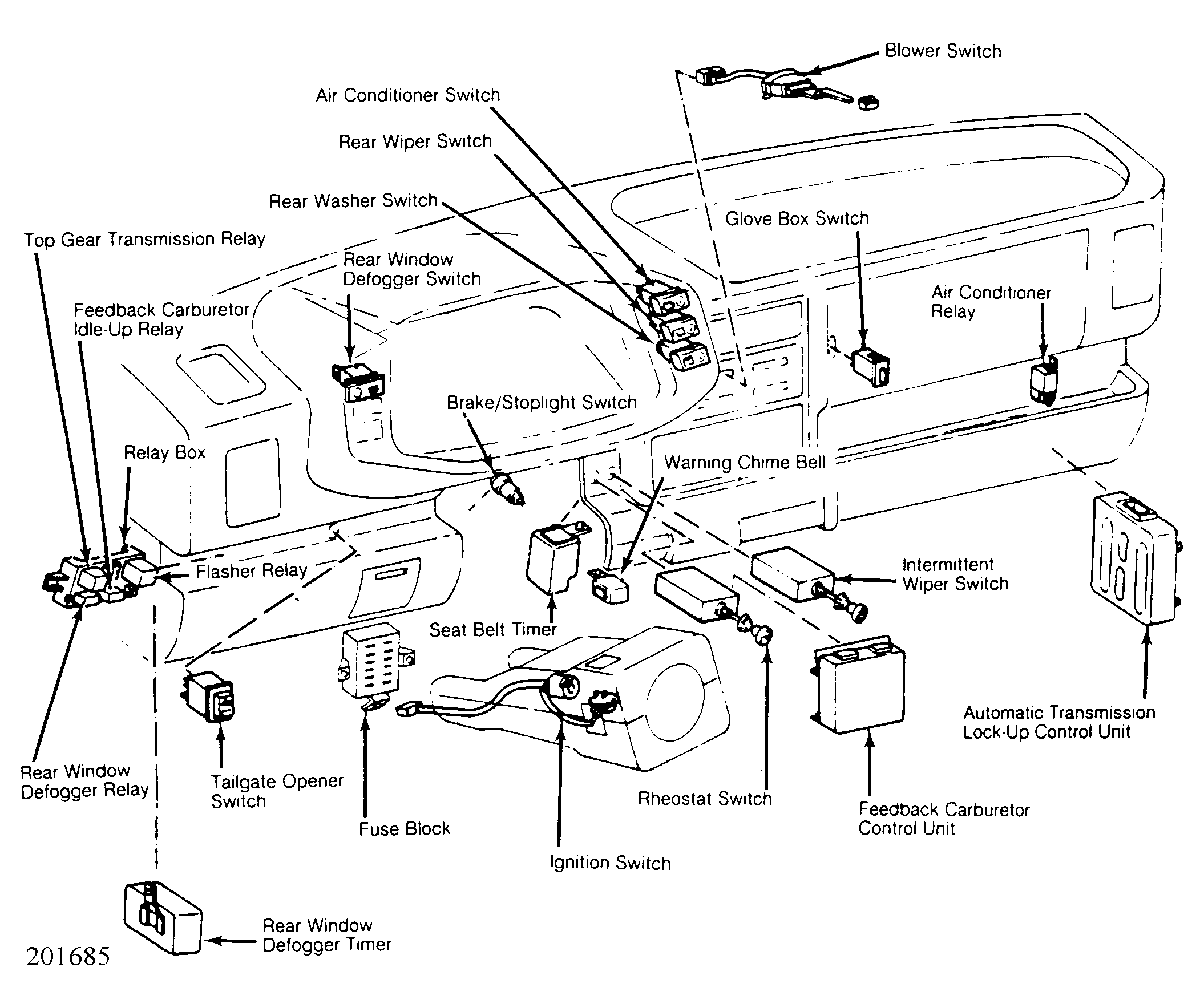

Fuse Block Under left side of dash. See Figure .

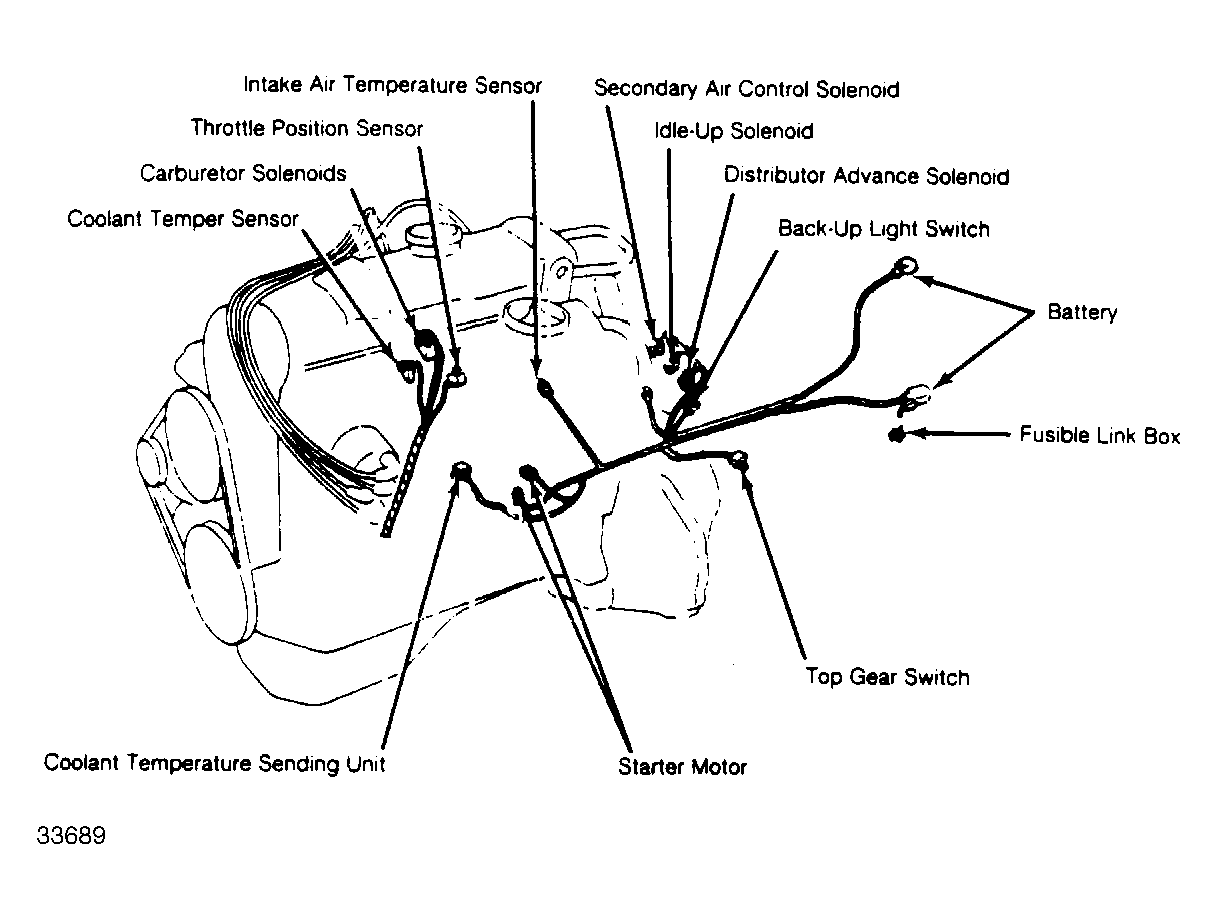

Fusible Links Near positive terminal of battery. See Figure & Figure .
