Inside/Outside Control

Move control lever to INSIDE position. Connect cable to damper lever with outside air intake to heater closed. Apply multipurpose grease to rotating portions of sliding lever. Check for proper damper operation by moving control lever. To adjust, press air control lever toward cable and move outer wire at retaining clip. See Fig 1 .

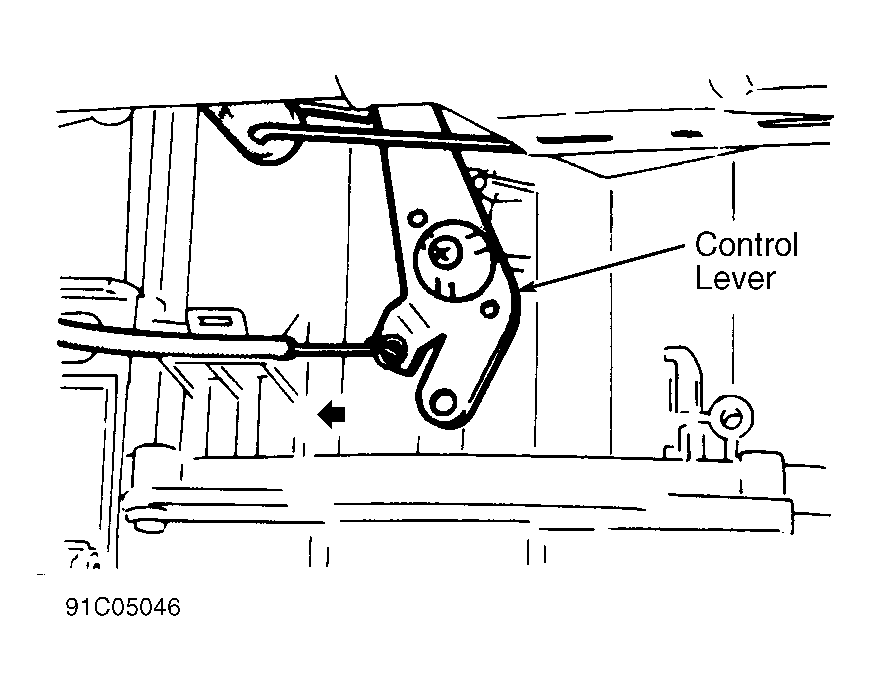

Fig 1: Adjusting Inside/Outside Air Selection Cable

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
