Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse Block On left side of dash.
Fuse/Relay Block On right inner fender panel. See Figure .
Main Fusible Link Box Next to positive battery post, on battery case bracket.
Relay Blocks

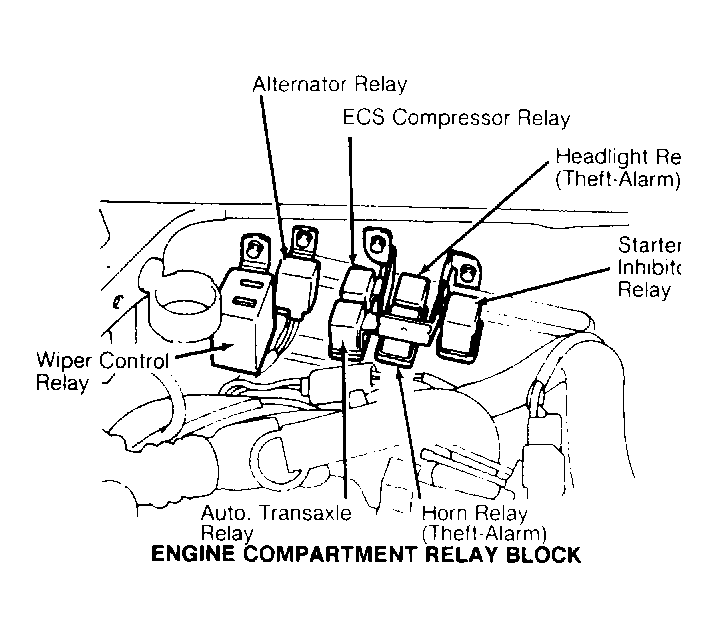

Engine Compartment In right front corner of engine compartment, behind battery. See Figure .

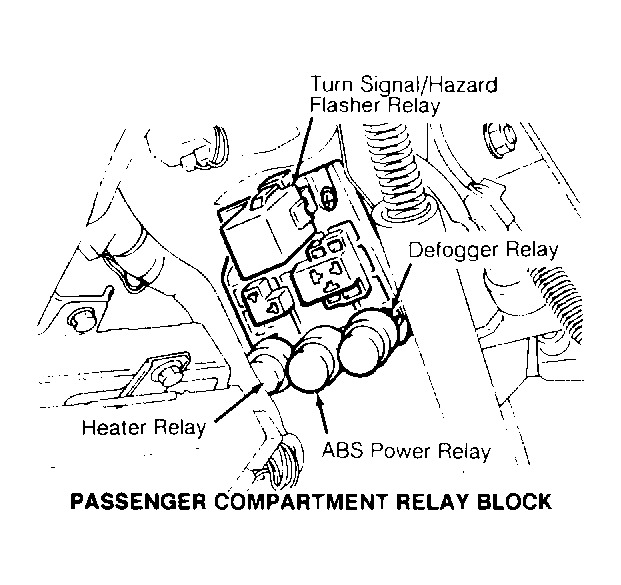

Passenger Compartment Under left side of dash, near steering column. See Figure .
Sub-Fusible Link Block In fuse/relay block, on right inner fender panel. See Figure .
