Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

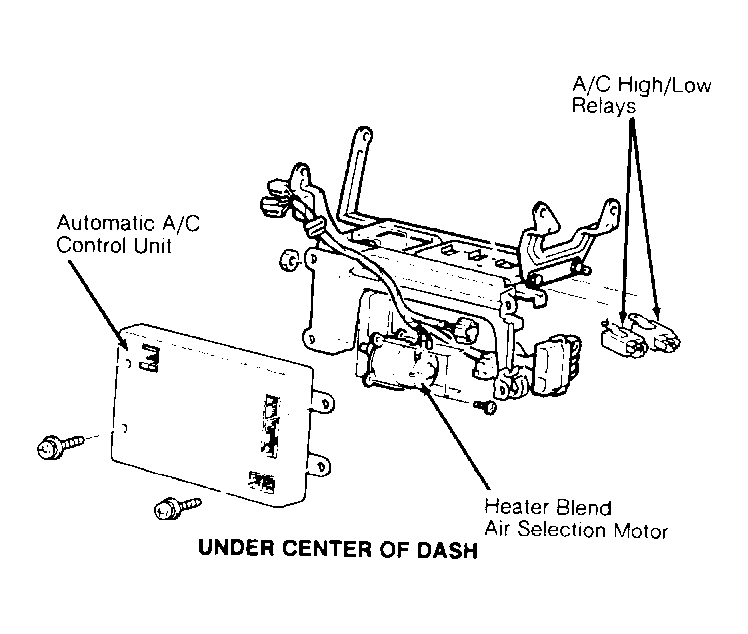

| Automatic A/C Control Unit | Under center of dash. See Figure . |
| Auto-Cruise Control Unit | Under left side of dash. See Figure . |
| Anti-Lock Brake Control Unit | Behind left side of luggage compartment. |

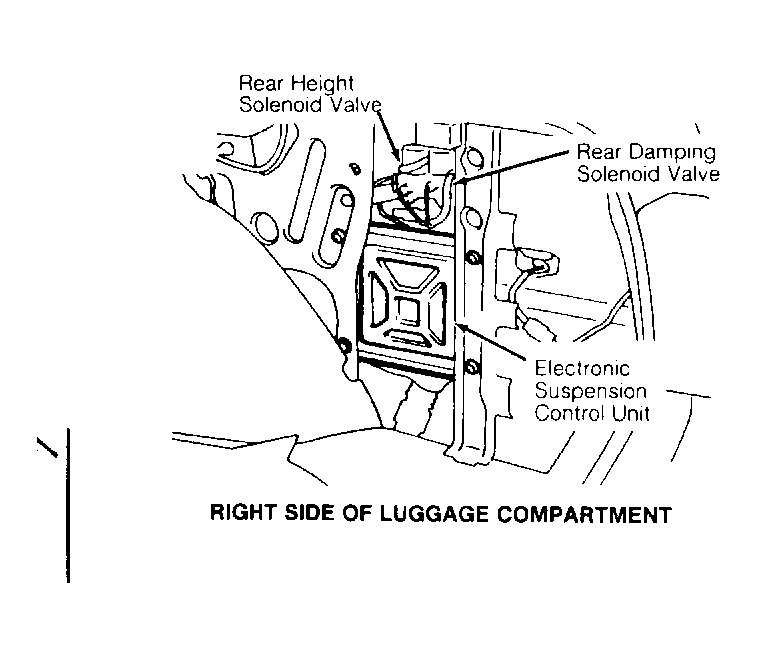

| Electronic Suspension Control Unit | Behind right side of luggage compartment. See Figure . |

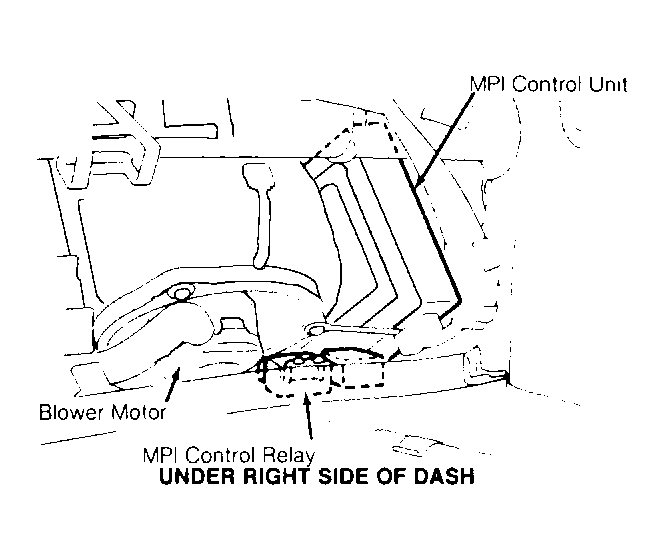

| Multi Point Injection (MPI) Control Unit | Under right side of dash. See Figure . |
| Power Steering Control Unit | Behind center console. |
| Theft & Alarm Control Unit (ETACS) | Under left side of dash, behind auto-cruise control unit. See Figure . |
| Transaxle Control Unit | In center of dash, under heater unit. |
