Control Units

CONTROL UNITS LOCATION

Component Location
ABS Control Unit Behind right rear trim panel.
A/C Control Unit Behind right side of dash, above evaporator case. See Figure.
Anti-Theft Alarm/Door Lock Control Unit Behind right side of dash, above kick panel. See Figure.
A/T Control Unit Behind center console. See Figure.
Automatic Seat Belt Control Unit On left door pillar, behind trim panel.
Cruise Control Unit Behind left side of dash.

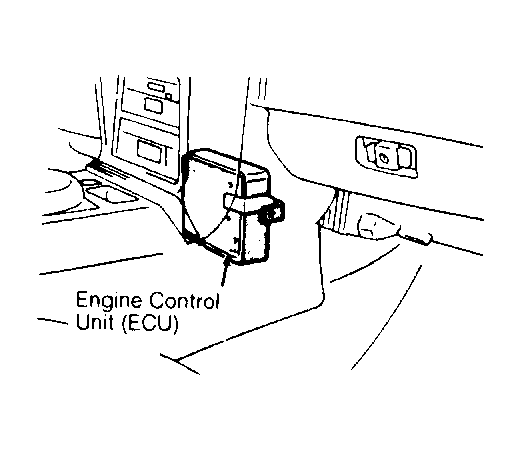

Engine Control Unit (ECU) Behind center console. See Figure.
Theft Alarm Control Unit Behind right kick panel.
