Ignition System: Distributor

NOTE: Eclipse 2.0L & Galant DOHC use Distributorless Ignition System (DIS). For exploded view of distributor on all other models, see Fig 1 or Fig 2 .

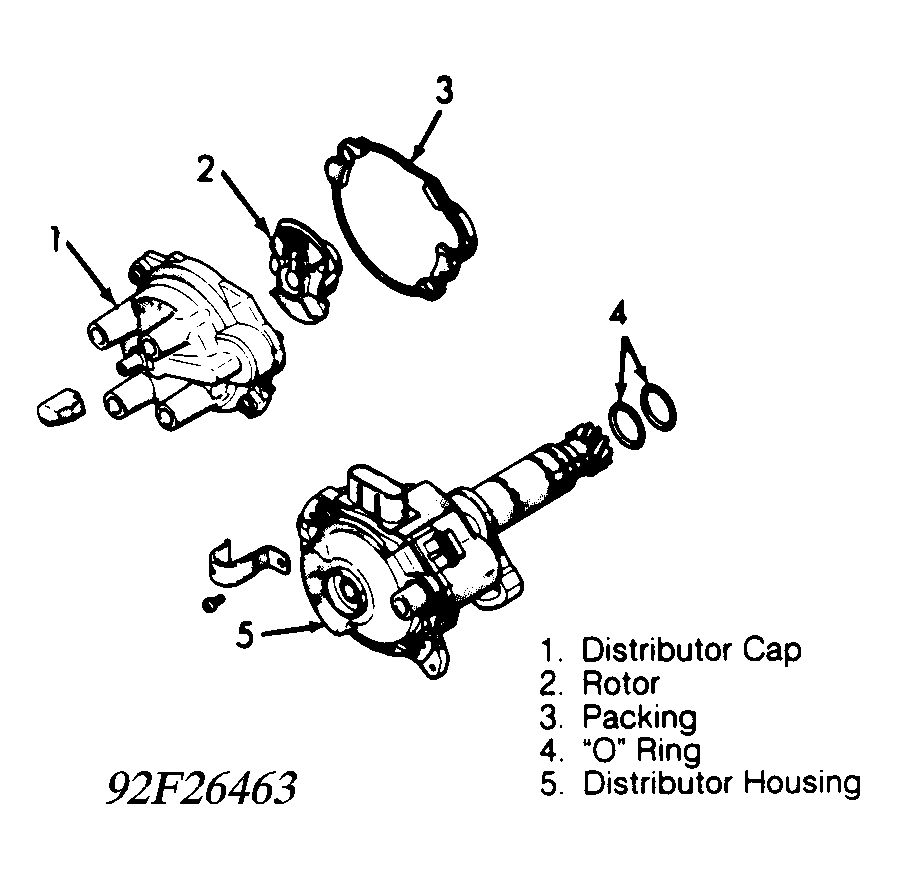

Fig 1: Exploded View Of Distributor (Eclipse 1.8L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Exploded View Of Distributor (Galant SOHC)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
