NS-6A: Checking DRB-II Communication

Fig 1: Test NS-6A Schematic Checking DRB-II Communication

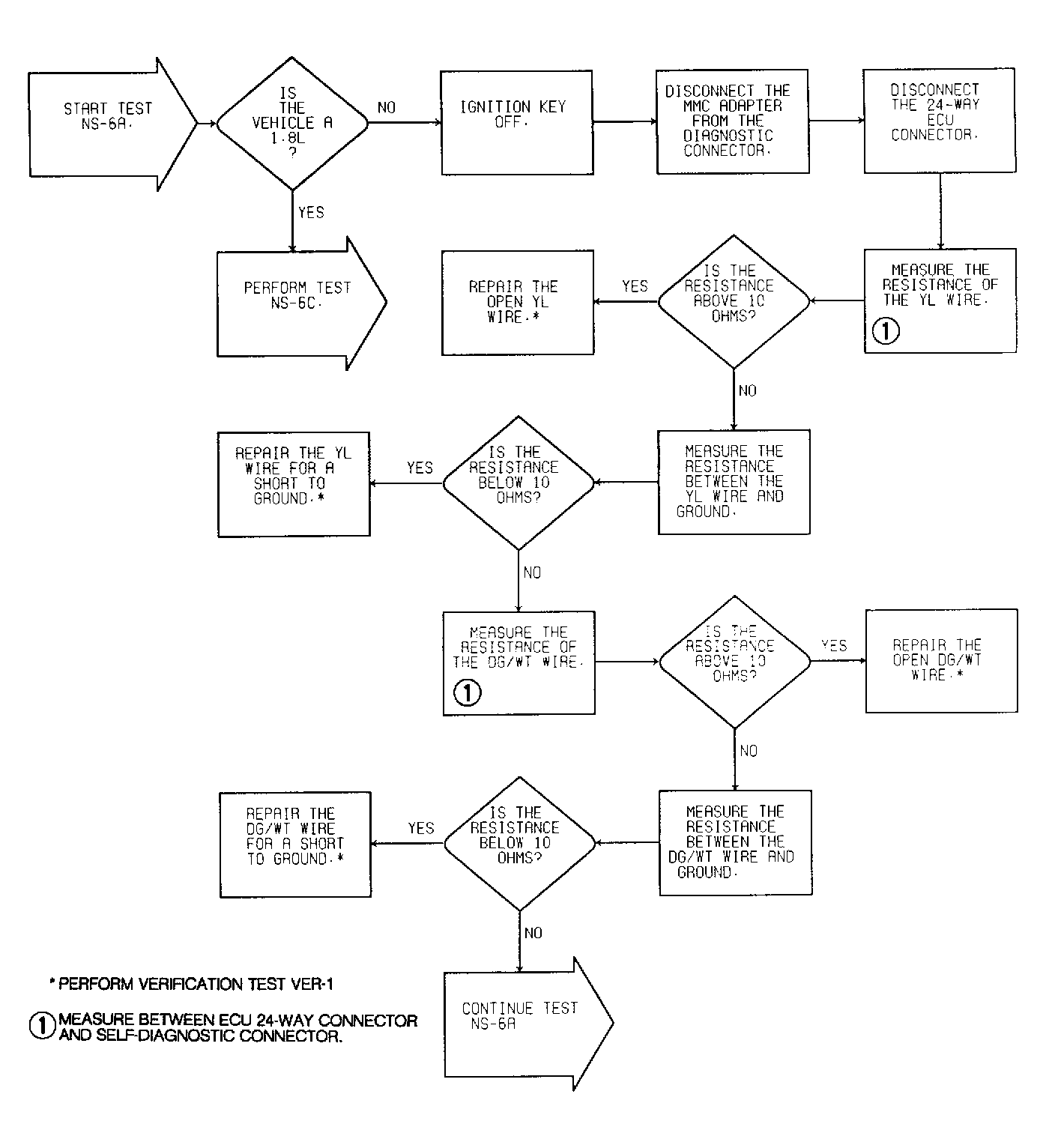

Fig 2: Test NS-6A Flow Chart (1 Of 3) Checking DRB-II Communication

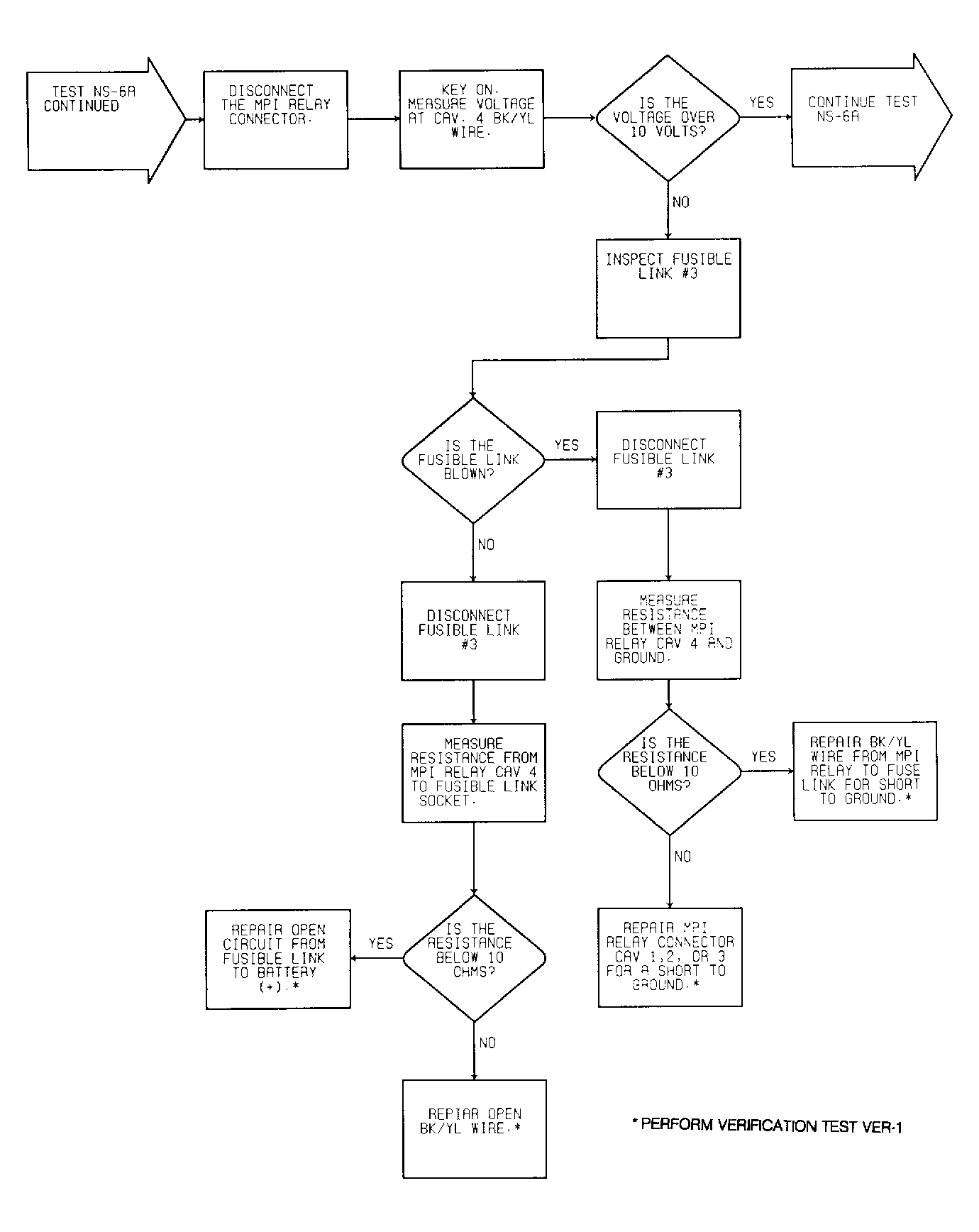

Fig 3: Test NS-6A Flow Chart (2 Of 3) Checking DRB-II Communication

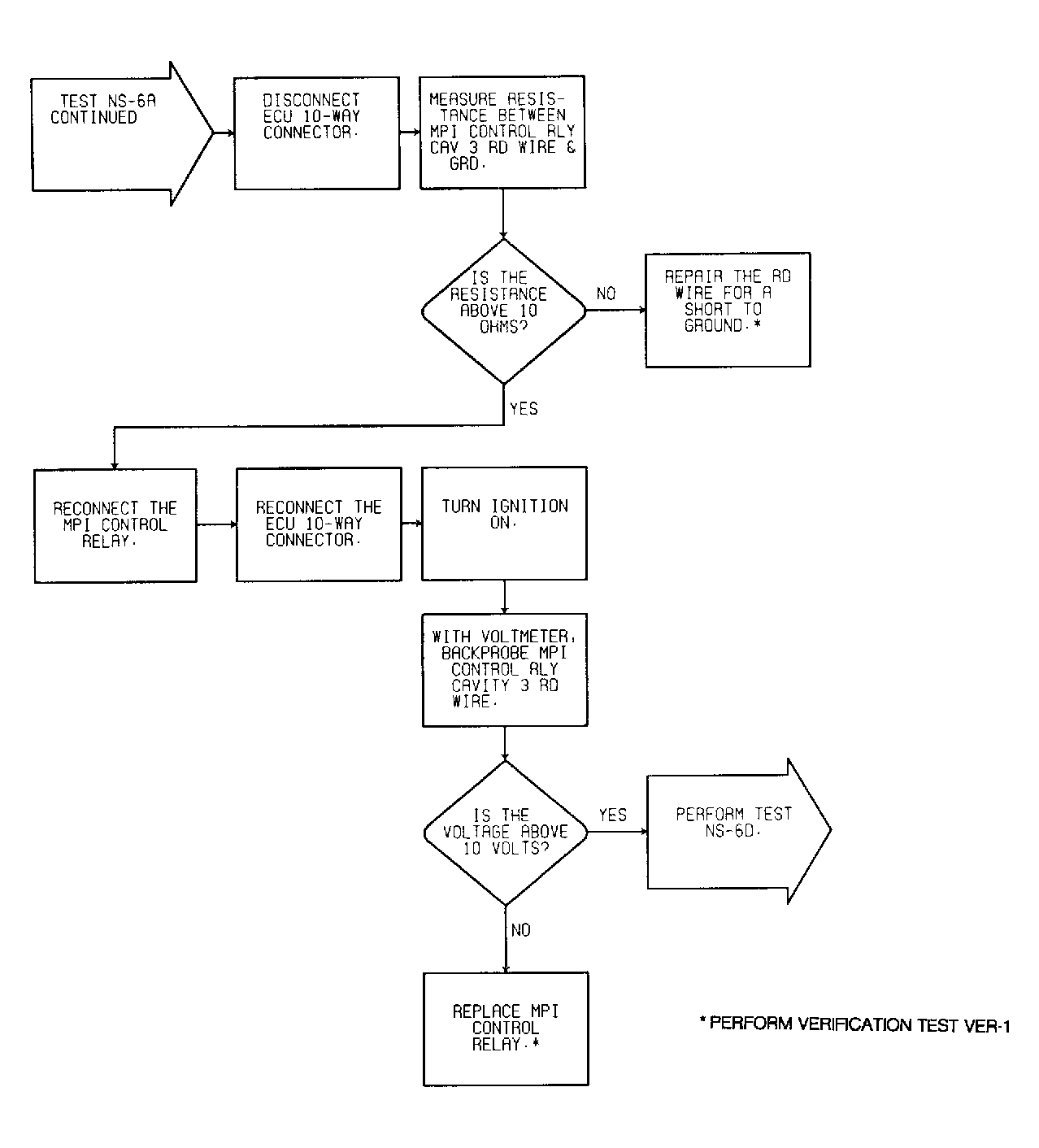

Fig 4: Test NS-6A Flow Chart (3 Of 3) Checking DRB-II Communication
