Dr-3A: Code 12, Testing Airflow Sensor

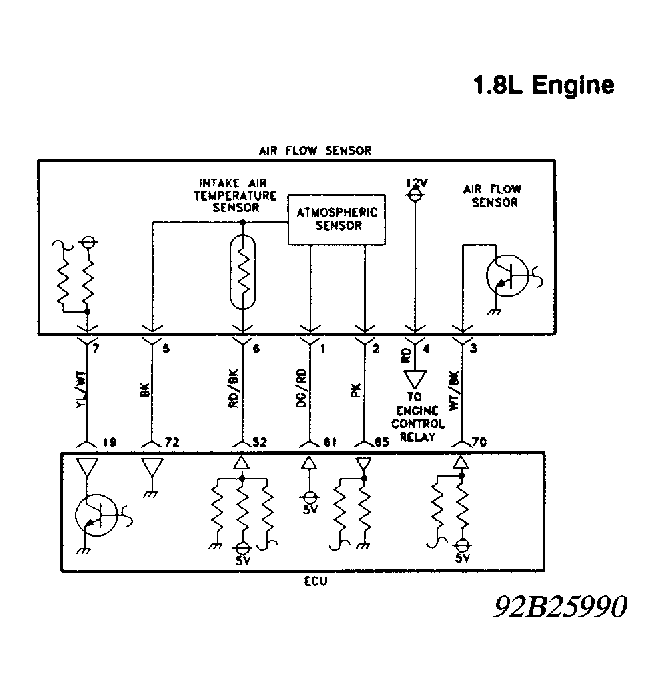

Fig 1: Test DR-3A Schematic (1.8L) - Code 12 Testing Airflow Sensor

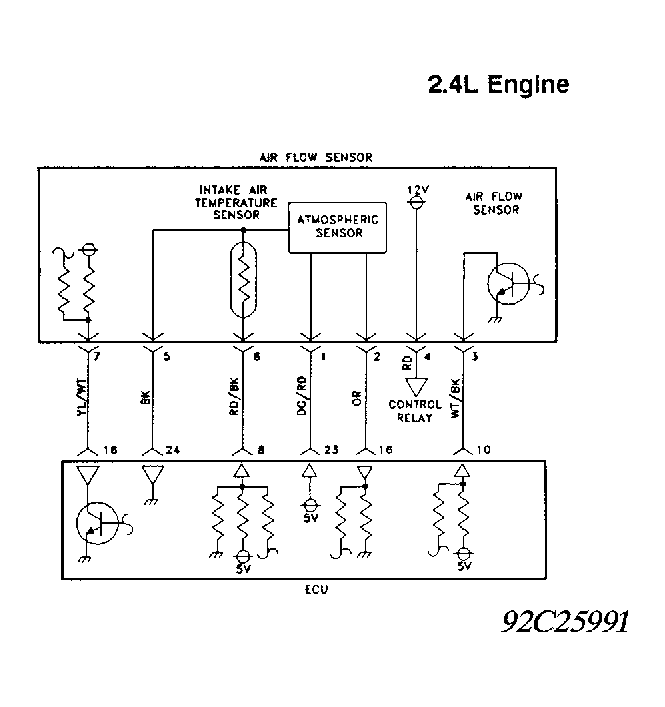

Fig 2: Test DR-3A Schematic (2.4L) - Code 12 Testing Airflow Sensor

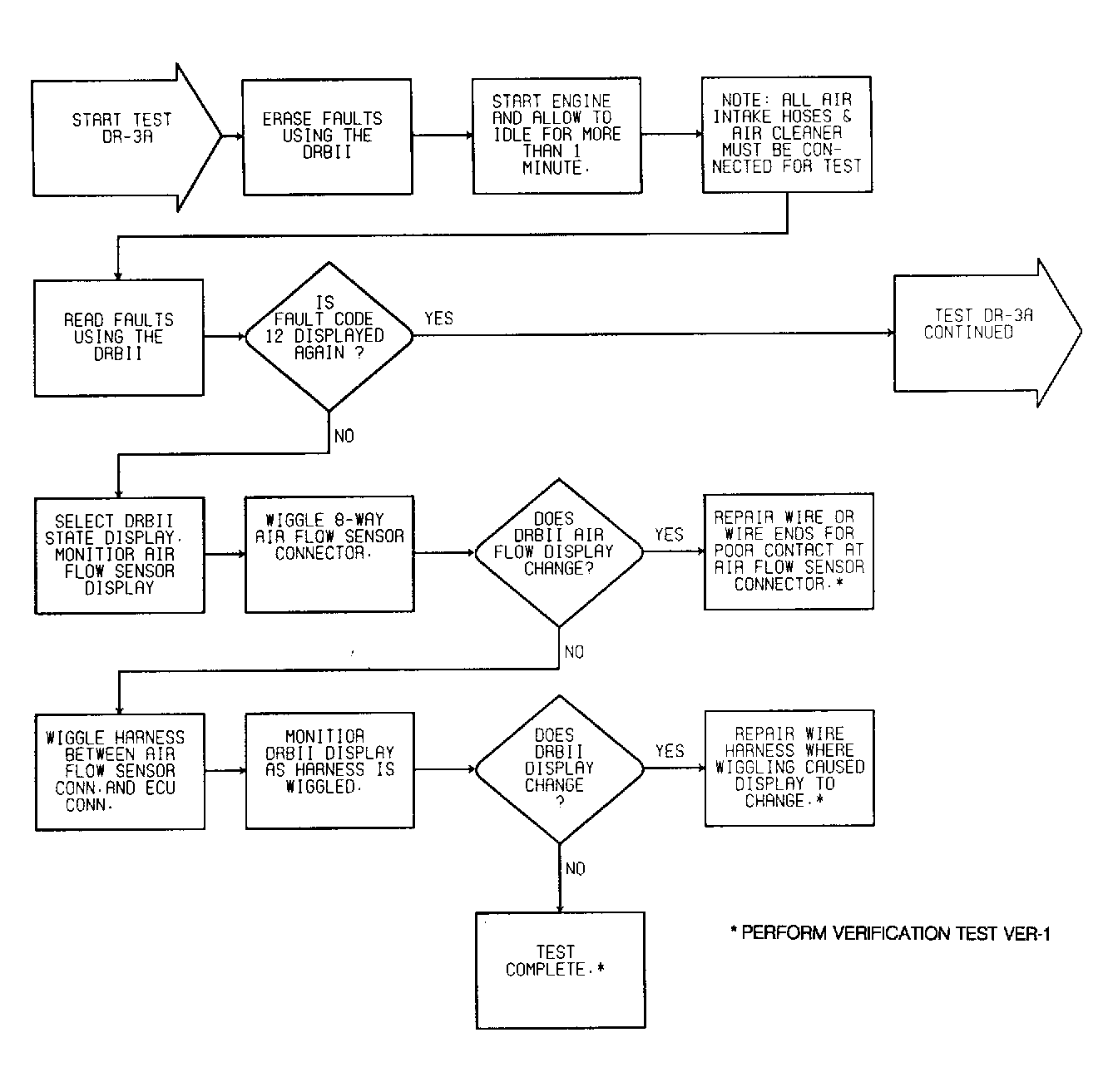

Fig 3: Test DR-3A Flow Chart (1 Of 3) Testing Airflow Sensor

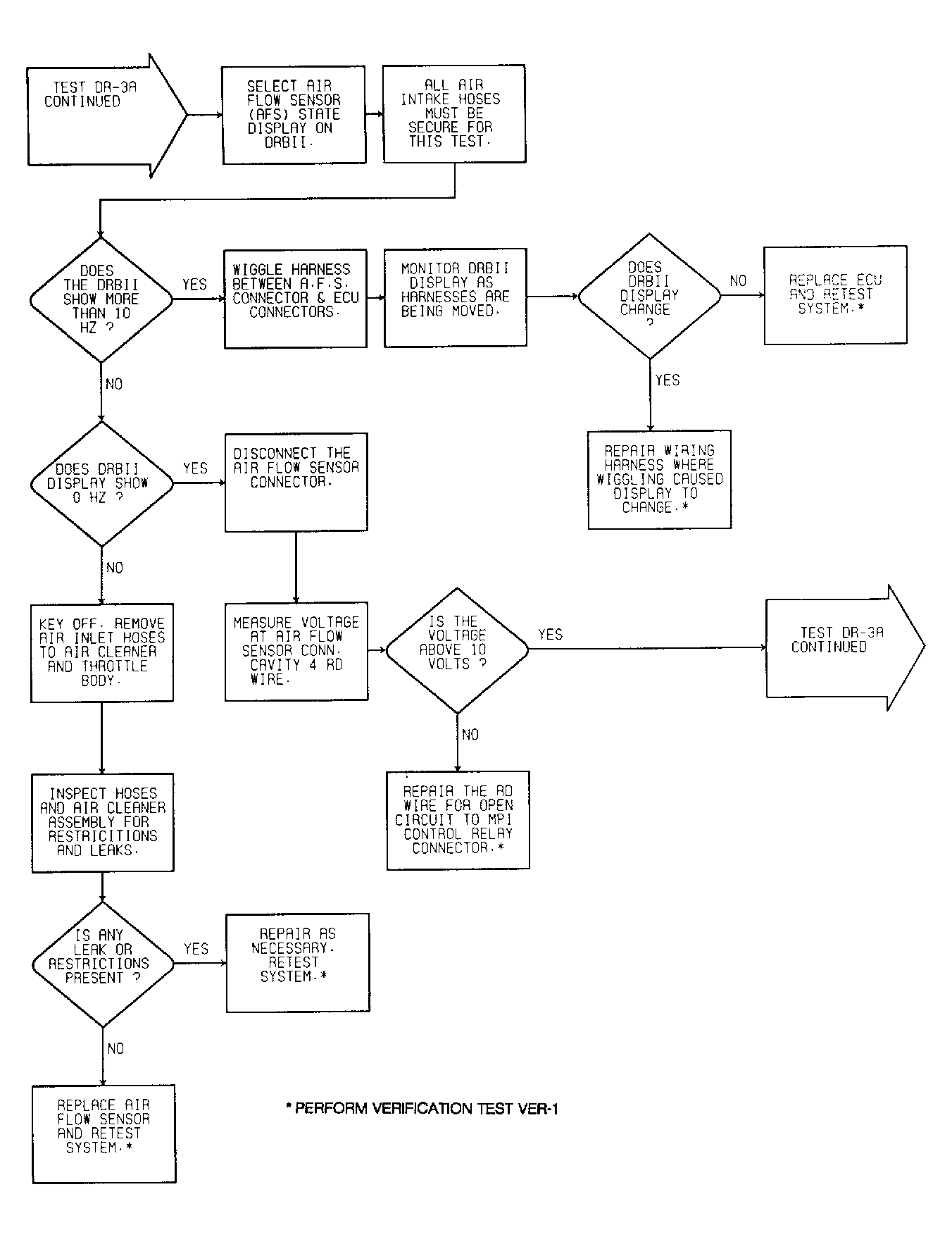

Fig 4: Test DR-3A Flow Chart (2 Of 3) Testing Airflow Sensor

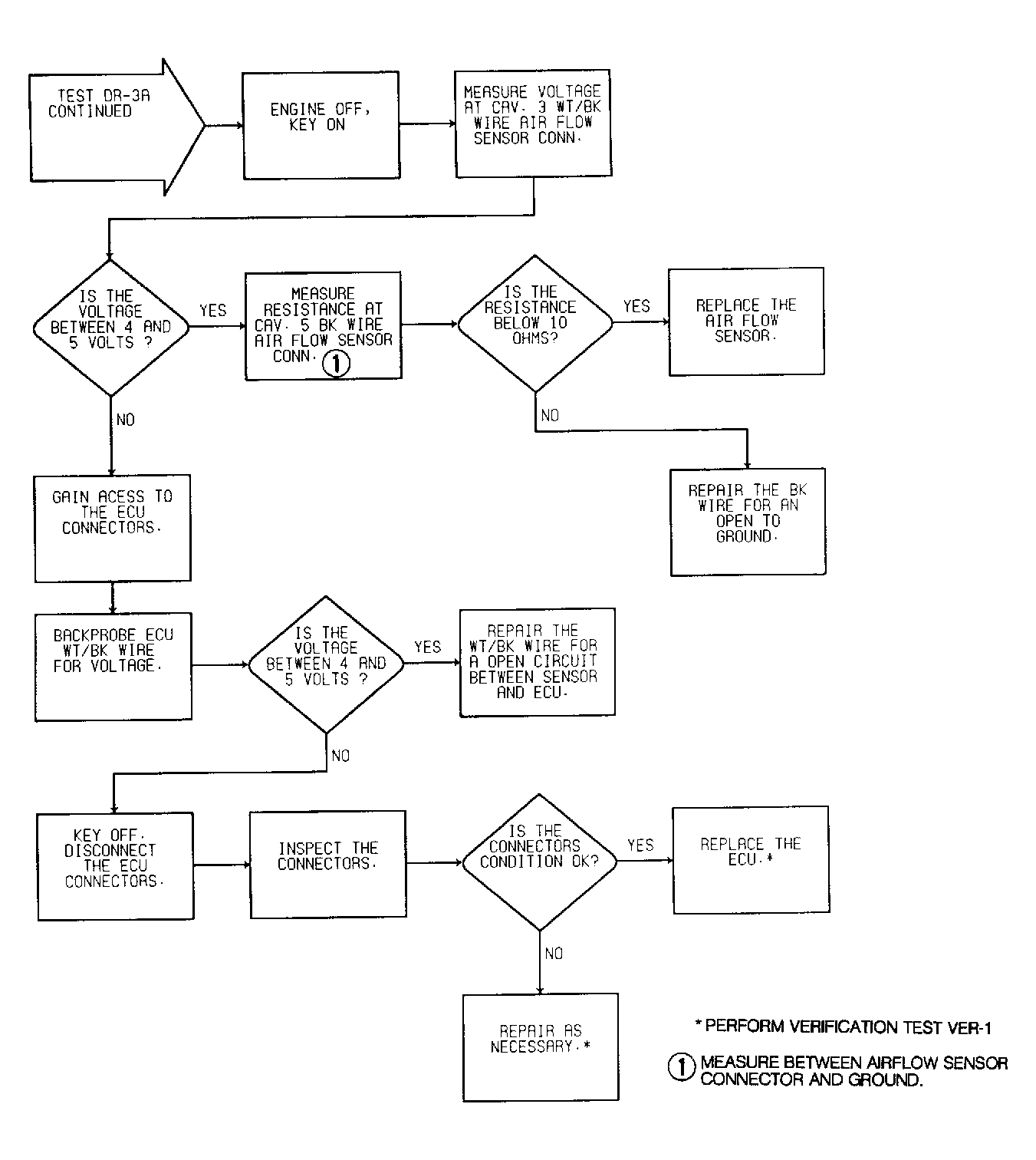

Fig 5: Test DR-3A Flow Chart (3 Of 3) Testing Airflow Sensor
