Dr-5A: Code 14, Testing Throttle Position Sensor

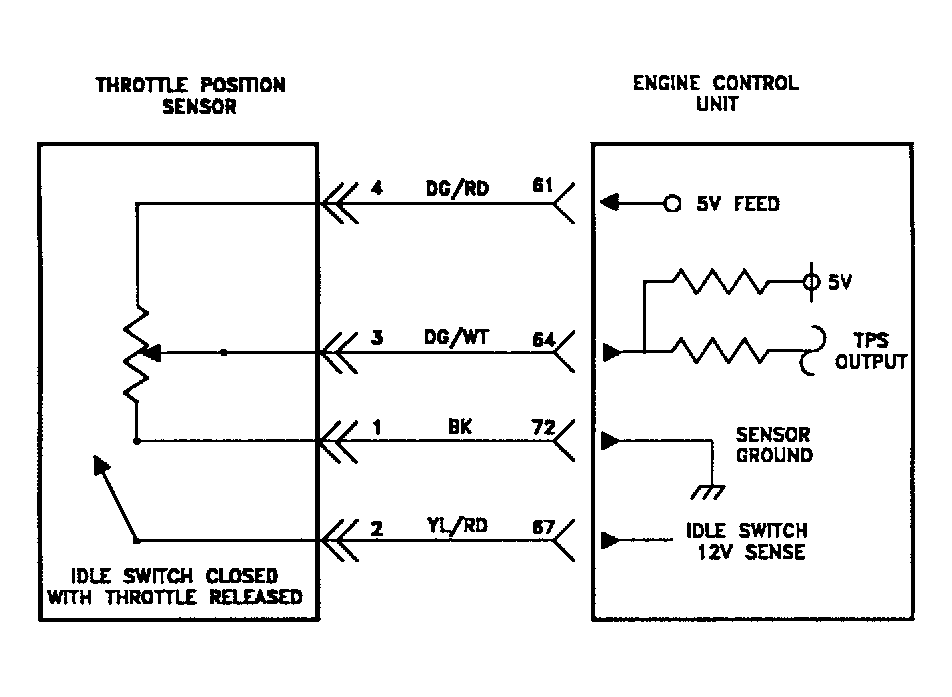

Fig 1: Test DR-5A Schematic - Code 14 Testing Throttle Position Sensor

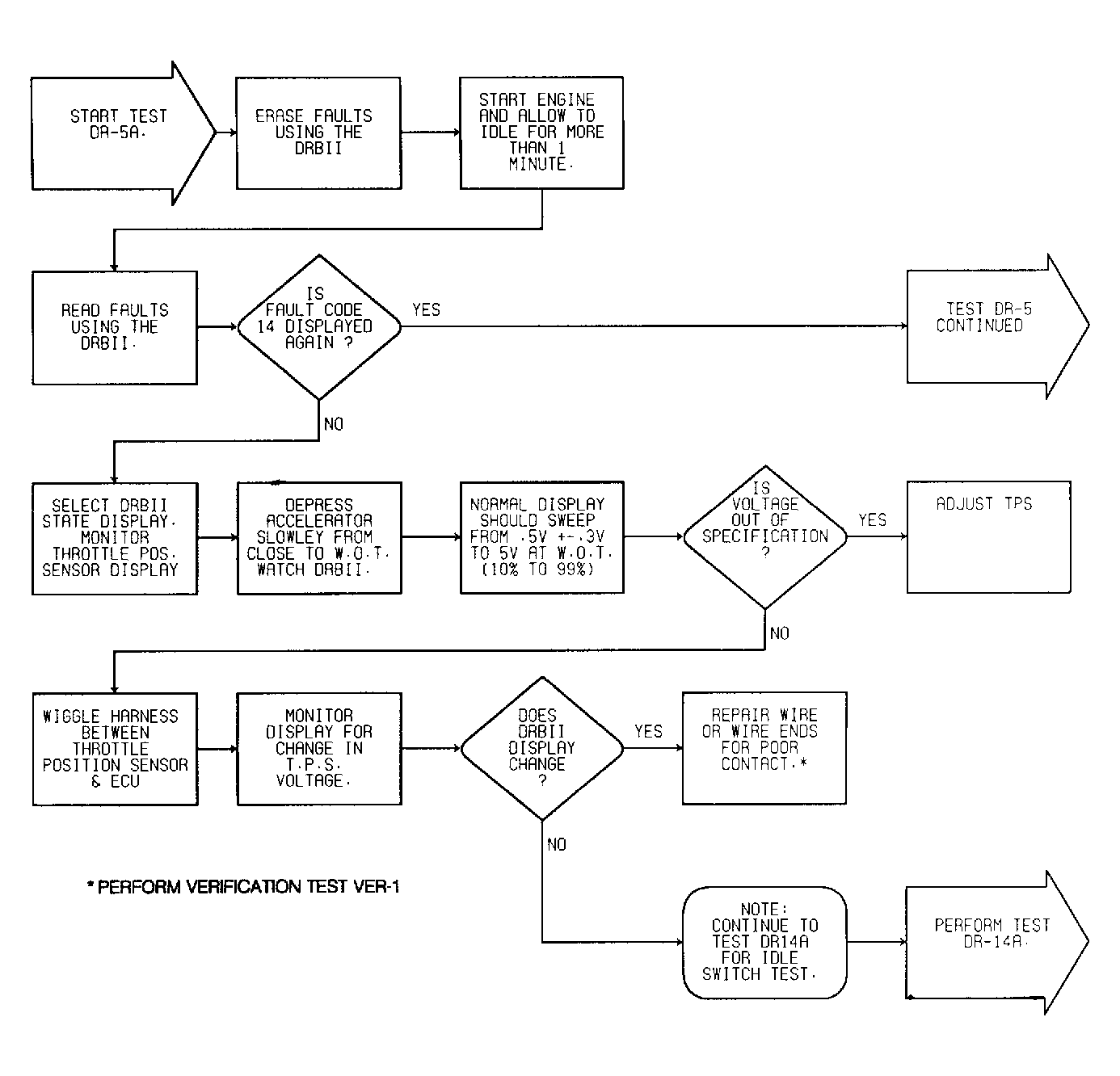

Fig 2: Test DR-5A Flow Chart - Code 14 (1 Of 2) Testing Throttle Position Sensor

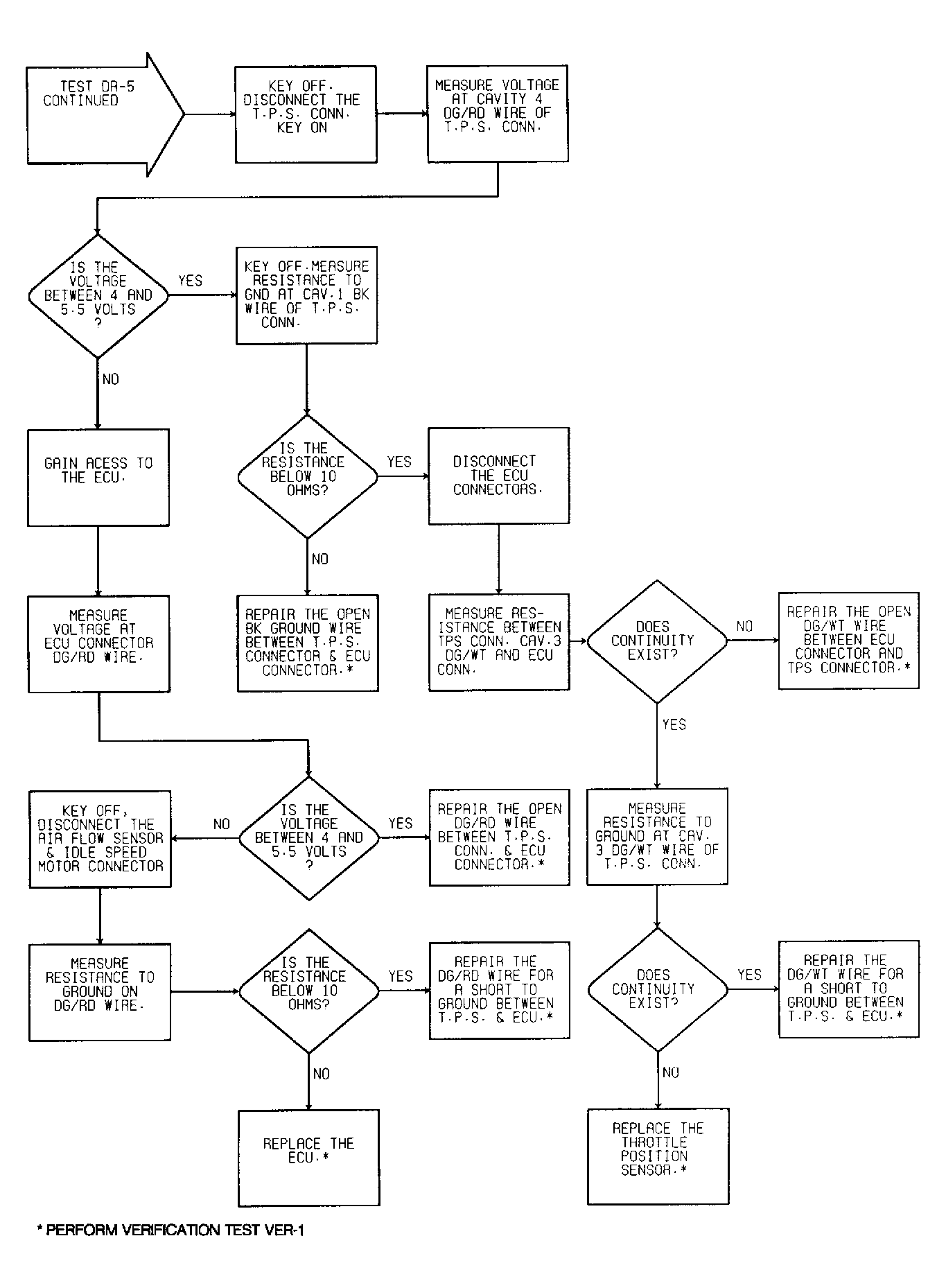

Fig 3: Test DR-5A Flow Chart - Code 14 (2 Of 2) Testing Throttle Position Sensor
