Power Steering Pump: Reassembly

Apply Dexron-II ATF fluid to "O" rings and vanes. To reassemble, reverse disassembly procedure. Install oil seal into pump body using Installers (MB990925-01 and MB990938-01 ). Install vanes into rotor in right direction. See Fig 1 .

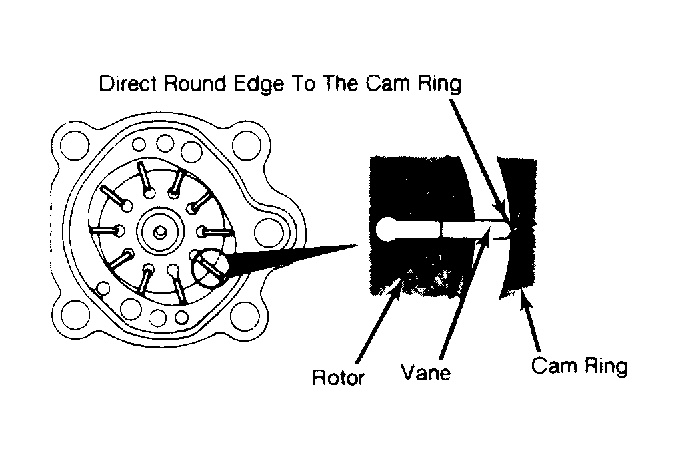

Fig 1: Installing Vanes Into Rotor Of Power Steering Pump

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
