Ground Circuits
- Turn ignition off. Using an ohmmeter, check continuity between chassis ground and ECM ground terminals. See GROUND TERMINAL ID
table. Ohmmeter should indicate zero ohms. If reading is not zero ohms, check and repair open circuit between ECM connector and ground.

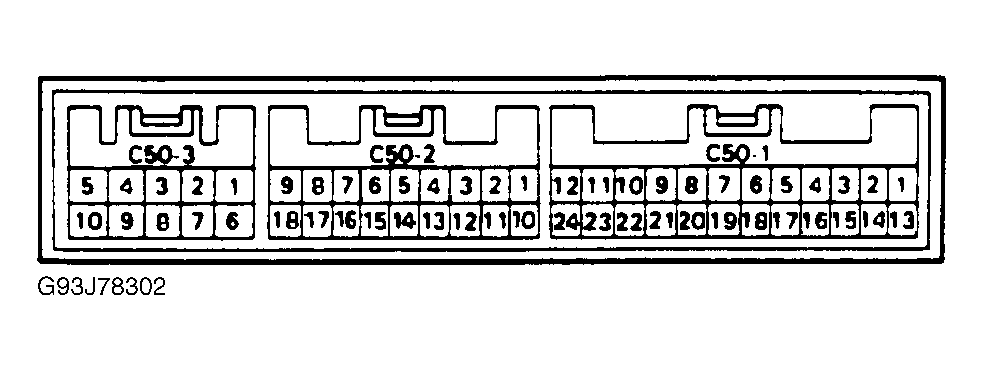

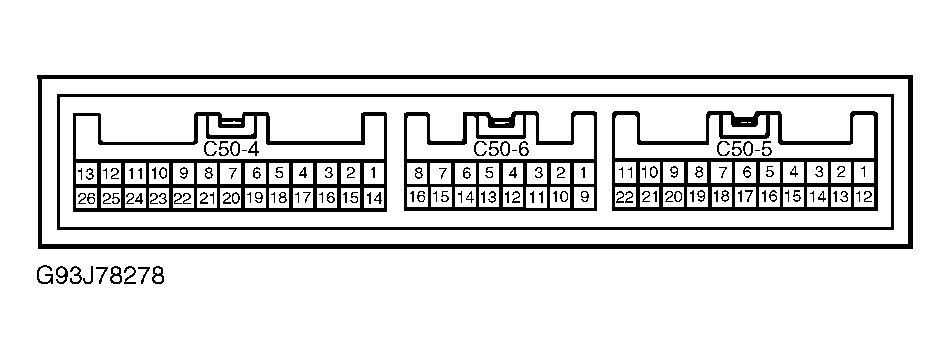

- Connect voltmeter negative lead to chassis ground. Connect positive lead to ECM ground terminals. See GROUND TERMINAL ID
table. See Figure
and Figure
