Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
A/C Fuses (2) In fuse/relay block, on left rear of engine compartment.

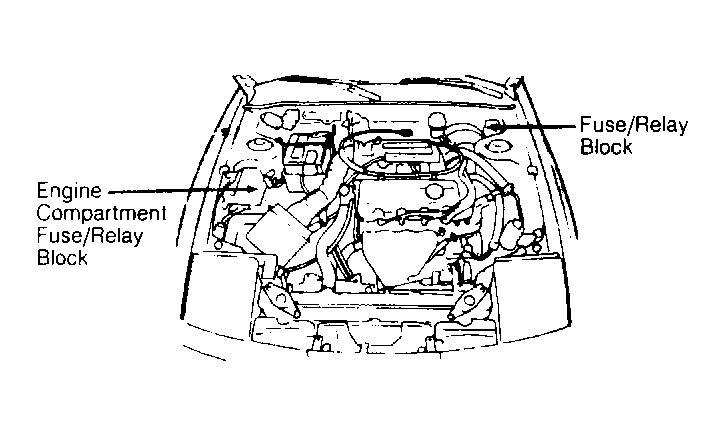

Engine Compartment Fuse/Relay Blocks (2) On left rear & right corner near shock tower) of engine compartment. See Figure.

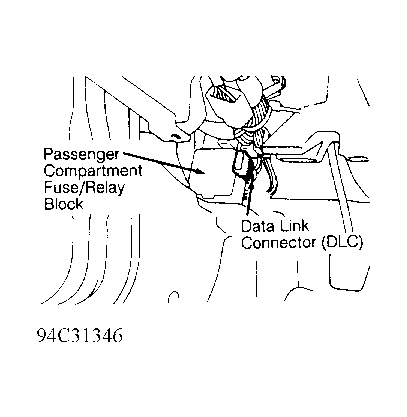

Passenger Compartment Fuse/Relay Block Under left side of dash. See Figure.
Fusible Links
Main Fusible Links On right rear of engine compartment, near battery.
Sub Fusible Links On right corner of engine compartment, near shock tower.
