Manual Transmission

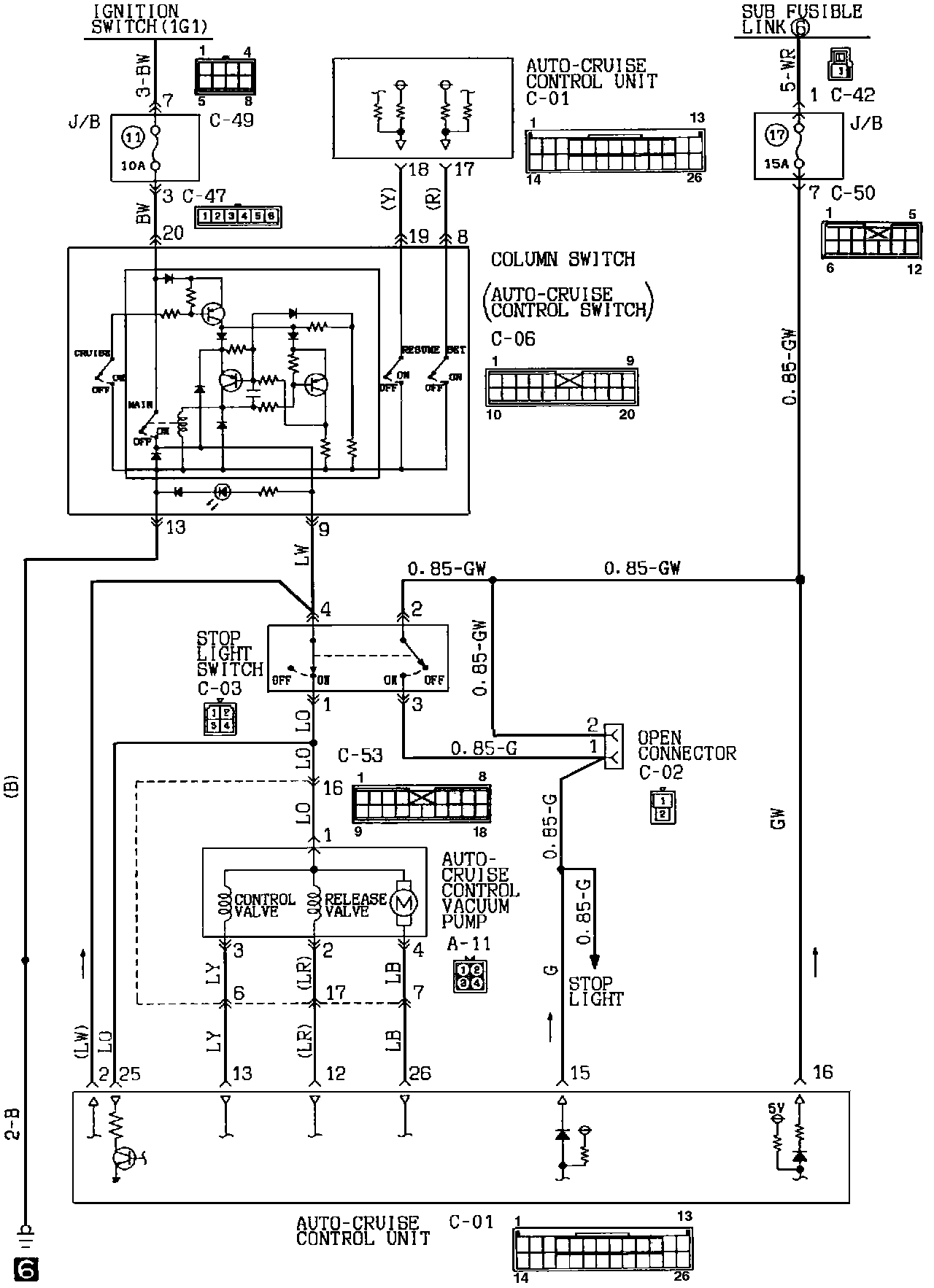

Auto-Cruise Control Circuit (Part 1 Of 3):

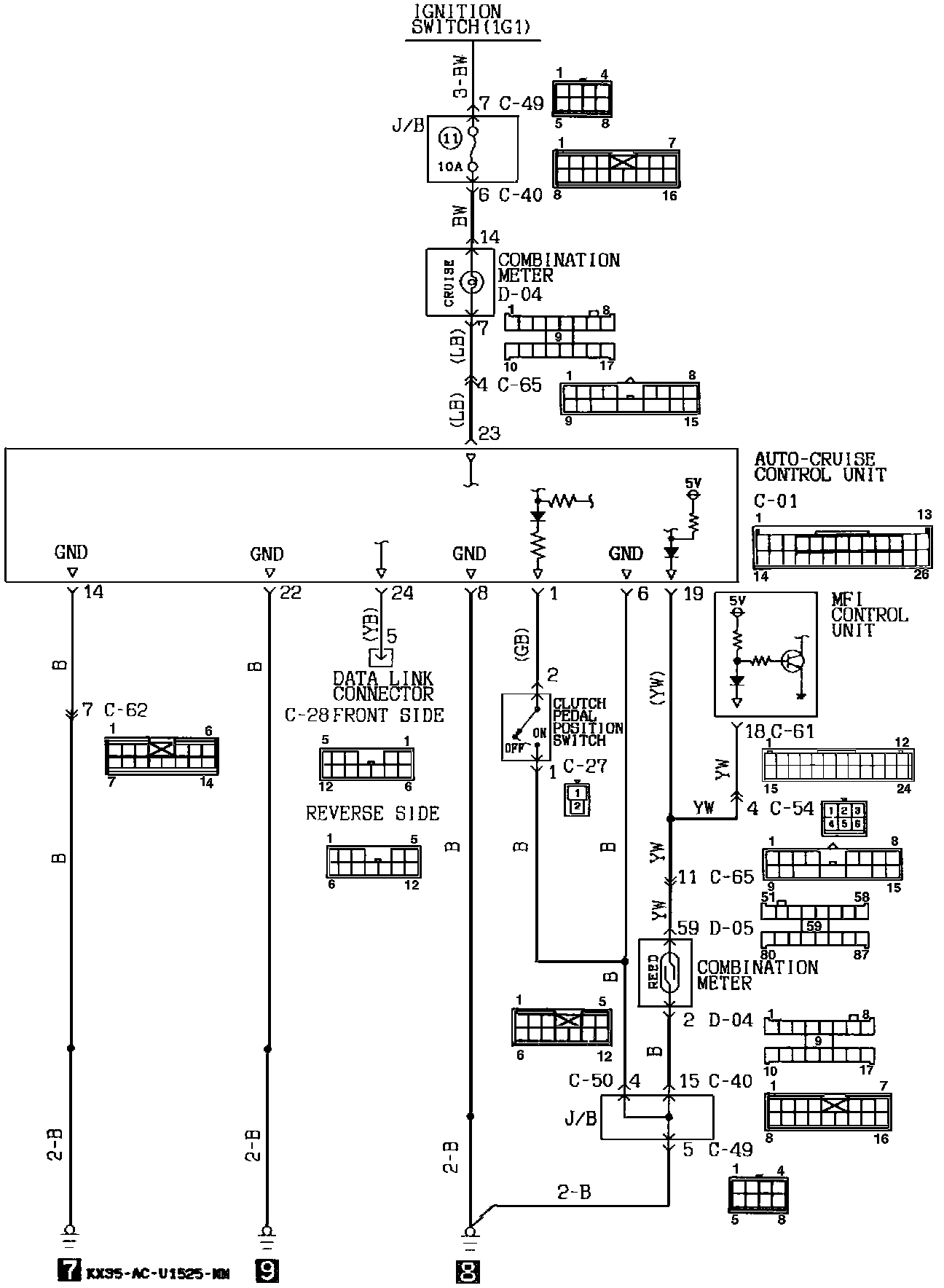

Auto-Cruise Control Circuit (Part 2 Of 3):

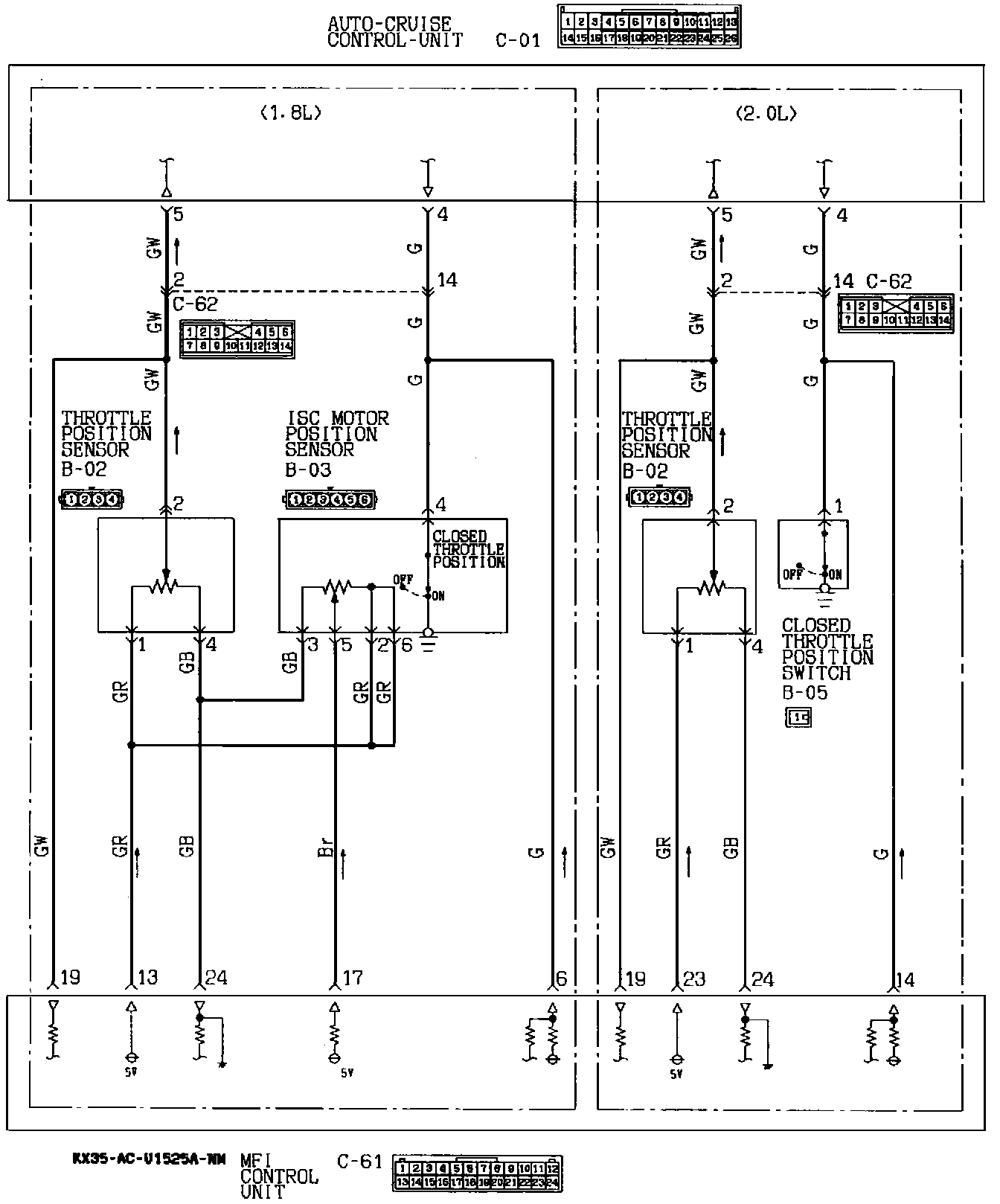

Auto-Cruise Control Circuit (Part 3 Of 3):
