Terminal Identification

NOTE: The following terminals are shown as viewed from component side of connector.

TERMINAL IDENTIFICATION DIRECTORY

Connector	See Figure
Airflow Sensor	Fig 1
CKP/CMP Sensor	Fig 2
Coolant Temperature Sensor	Fig 3
ECM	Fig 4
EGR Temperature Sensor	Fig 5
Fuel Injector	Fig 6
Idle Air Control Valve Position Sensor	Fig 7
Idle Speed Control Motor & Position Sensor	Fig 10
Ignition Coil	Fig 11
Induction Control Valve Position Sensor	Fig 12
Knock Sensor	Fig 13
MAP Sensor	Fig 14
MFI Relay	Fig 15
Oxygen Sensor (O2S)	Fig 16
Throttle Position Sensor	Fig 17
Traction Control Vacuum Solenoid	Fig 18
Traction Control Vent Solenoid	Figure
Transaxle Control Module	Figure

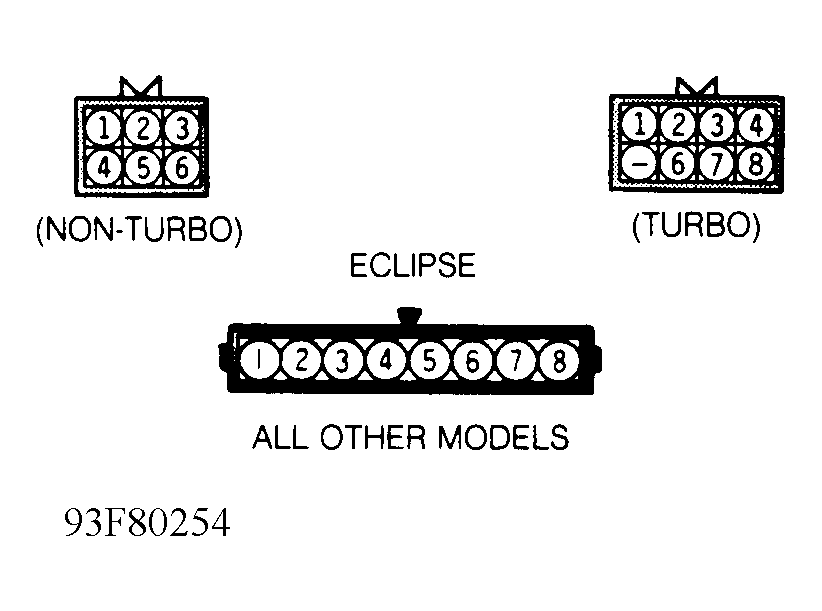

Fig 1: Identifying Airflow Sensor Terminals

G93F80254

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Identifying CKP/CMP Sensor Terminals

G94E44317

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Identifying Engine Coolant Temperature (ECT) Sensor Terminals

G94H45218

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Identifying ECM Terminals

G93A78303

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 5: Identifying EGR Temperature Sensor Terminals

G93J80258

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Identifying Fuel Injector Terminals

G93A80259

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Idle Air Control Valve Position Sensor Terminal ID

G93E80261

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Idle Speed Control Motor & Position Sensor Terminal ID

G93F80262

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

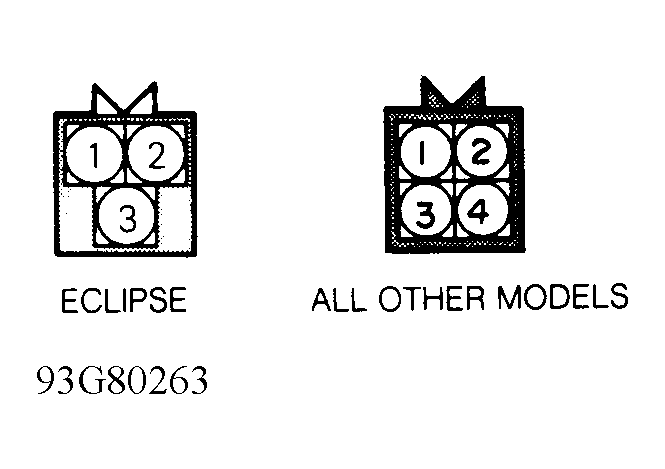

Fig 9: Identifying Ignition Coil Terminals

G93G80263

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 10: Induction Control Valve Position Sensor Terminal ID

G93H80264

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 11: Identifying Knock Sensor Terminals

G93I80265

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 12: Identifying Map Sensor Terminals

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 13: Identifying MFI Relay Terminals

G94H44559

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 14: Identifying Oxygen Sensor (O2S) Terminals

G94B44199

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 15: Identifying Throttle Position Sensor Terminals

G93C80269

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 16: Identifying Traction Control Vacuum Solenoid Terminals

G93F80270

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 17: Identifying Traction Control Vent Solenoid Terminals

G93G80271

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 18: Identifying Transaxle Control Module Terminals

G93H80272

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
