Terminal Identification

NOTE: The following terminals are shown as viewed from component side of connector unless otherwise noted.

TERMINAL IDENTIFICATION DIRECTORY

Connector	See Figure
CKP/CMP Sensor	Fig 1 -Fig 3
DLC	Fig 4
ECT Sensor	Fig 5
Fuel Injector	Fig 6 -Fig 9
Fuel Pump	Fig 10 -Fig 11
HO2S	Fig 12
IAC Motor	Fig 13
Ignition Coil	Fig 14 -Fig 16
KS	Fig 17
MDP Sensor	Fig 18
MFI Relay	Fig 19 -Fig 21
PNP Switch	Fig 22
PCM	Fig 23
Tachometer	Fig 24
TCM	Fig 25 -Fig 26
T/C Vacuum Solenoid	Fig 27
T/C Vent Solenoid	Fig 28
TP Sensor	Fig 29
VAF Sensor	Fig 30
VIC Valve Position Sensor	Fig 31

Fig 1: Identifying CKP/CMP Terminals (Diamante (CKP), Stealth (CKP) & 3000GT (CKP))

G95H31135

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 2: Identifying CKP/CMP Terminals (Diamante (CMP) & Stealth (SOHC - CMP))

G96B09826

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 3: Identifying CKP/CMP Terminals (Stealth (DOHC - CMP) & 3000GT (CMP))

G95J31137

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 4: Identifying DLC Terminals (All Models)

G95F31133

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 5: Identifying ECT Sensor Terminals (All Models)

G95G31142

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 6: Identifying Fuel Injector Terminals (Diamante (DOHC), Stealth (Non-Turbo) & 3000GT (Non-Turbo) - Rear Injector Bank)

G96F09828

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 7: Identifying Fuel Injector Terminals (Diamante (SOHC) - Rear Injector Bank)

G96H09829

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 8: Identifying Fuel Injector Terminals (Stealth (Turbo) & 3000GT (Turbo) - Rear Injector Bank)

G95I31144

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 9: Identifying Fuel Injector Terminals (All Other Models)

G95J31145

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 10: Identifying Fuel Pump Terminals (Diamante)

G95H31150

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

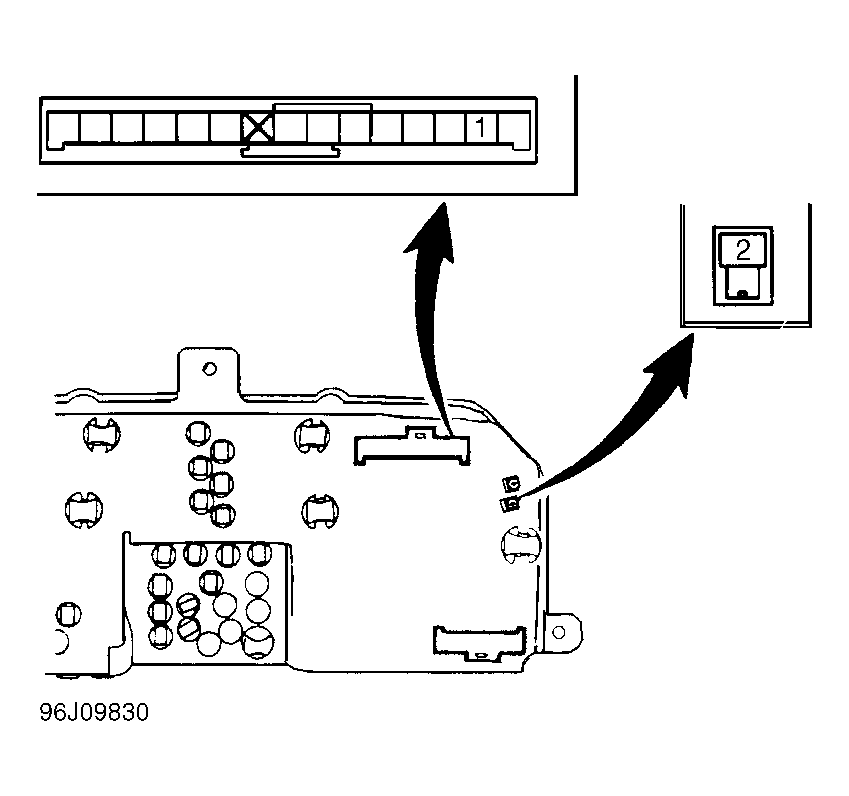

Fig 11: Identifying Fuel Pump Terminals (Stealth & 3000GT)

G96J09830

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 12: Identifying HO2S Terminals All Other Models (Front Or Rear)

G95E31165

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 13: Identifying IAC Motor Terminals (Diamante, Stealth & 3000GT)

G95I31151

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

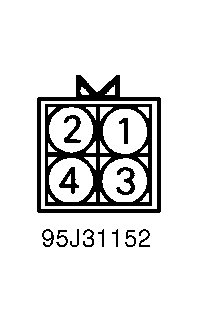

Fig 14: Identifying Ignition Coil Terminals (Diamante (DOHC))

G95J31152

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

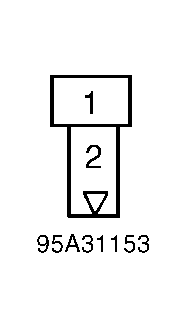

Fig 15: Identifying Ignition Coil Terminals (Diamante (SOHC) & Stealth (SOHC))

G95A31153

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 16: Identifying Ignition Coil Terminals (Stealth (DOHC) & 3000GT)

G95G31159

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 17: Identifying KS Terminals (All Models)

G93I80265

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 18: Identifying MDP Sensor Terminals (All Models)

G93J80266

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 19: Identifying MFI Relay Terminals (Diamante)

G95J31160

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 20: Identifying MFI Relay Terminals (Stealth & 3000GT)

G96A09835

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

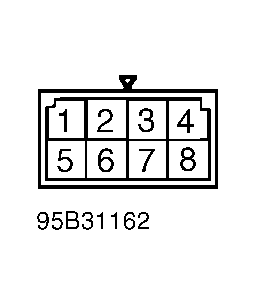

Fig 21: Identifying MFI Relay Terminals (All Other Models)

G95B31162

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 22: Identifying PNP Switch Terminals (All Models)

G95F31166

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 23: Identifying PCM Terminals (Diamante, Stealth & 3000GT)

G96C09836

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

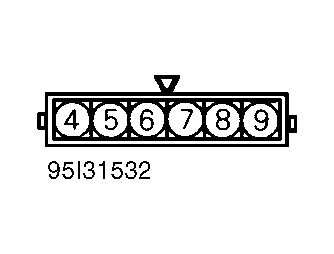

Fig 24: Identifying Tachometer Terminals (All Models)

G95I31532

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 25: Identifying TCM Terminals (Stealth & 3000GT)

G95D31537

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

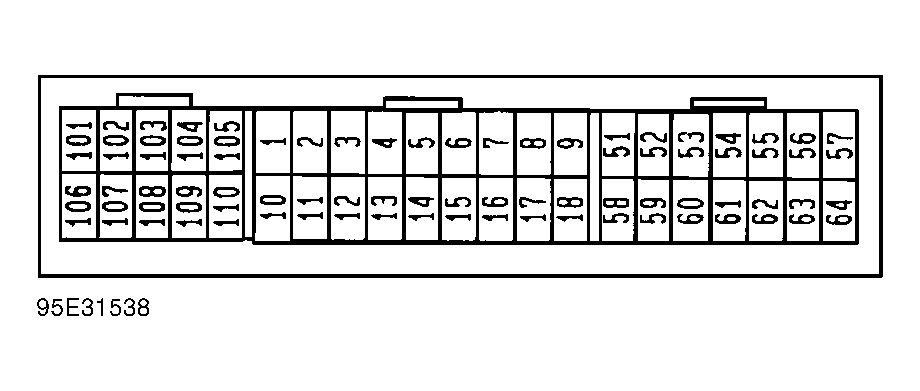

Fig 26: Identifying TCM Terminals (All Other Models)

G95E31538

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 27: Identifying T/C Vacuum Solenoid Terminals (All Models)

G93F80270

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 28: Identifying T/C Vent Solenoid Terminals (All Models)

G93G80271

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 29: Identifying TP Sensor Terminals (All Models)

G95A31534

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 30: Identifying VAF Sensor Terminals (All Models)

G95G31134

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 31: Identifying VIC Valve Position Sensor Terminals (All Models)

G95A31534

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
