Key Interlock Cable: 3000GT

Remove front console assembly. Move selector lever to "P". Loosen nut securing key interlock cable. Gently press lock cam "A" down while pushing cable to take up slack. See Fig 1. Tighten nut to specifications to secure cable. See TORQUE SPECIFICATIONS .

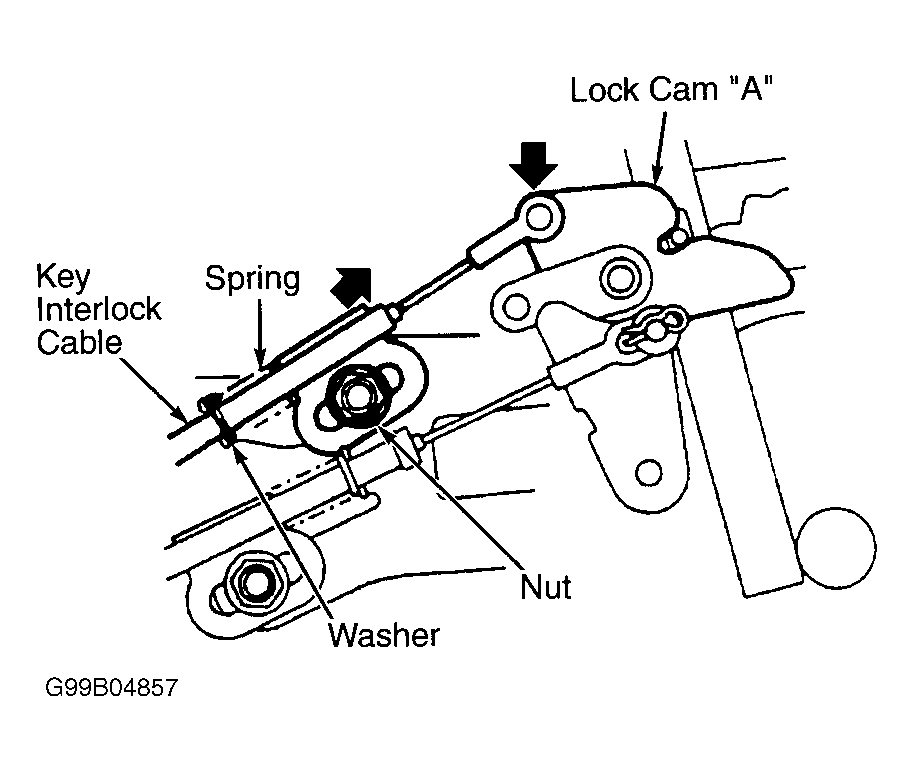

Fig 1: Adjusting Key Interlock Cable (3000GT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
