Terminal Identification

Connector	See
ASD/Fuel Pump/MFI Relay	Fig 1-Fig 3
CKP/CMP Sensor	Fig 4-Fig 10
DLC	Fig 11

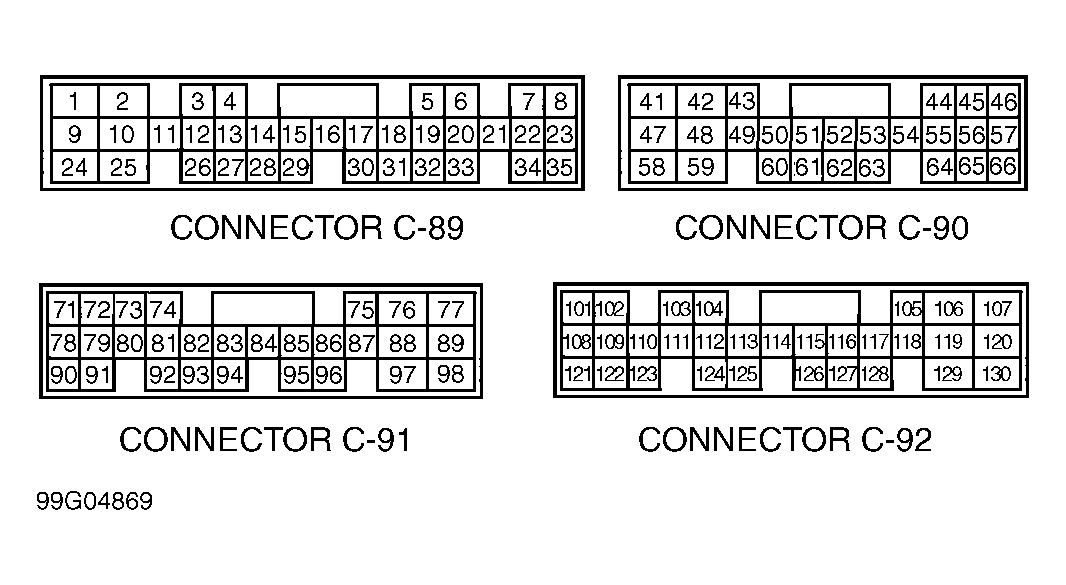

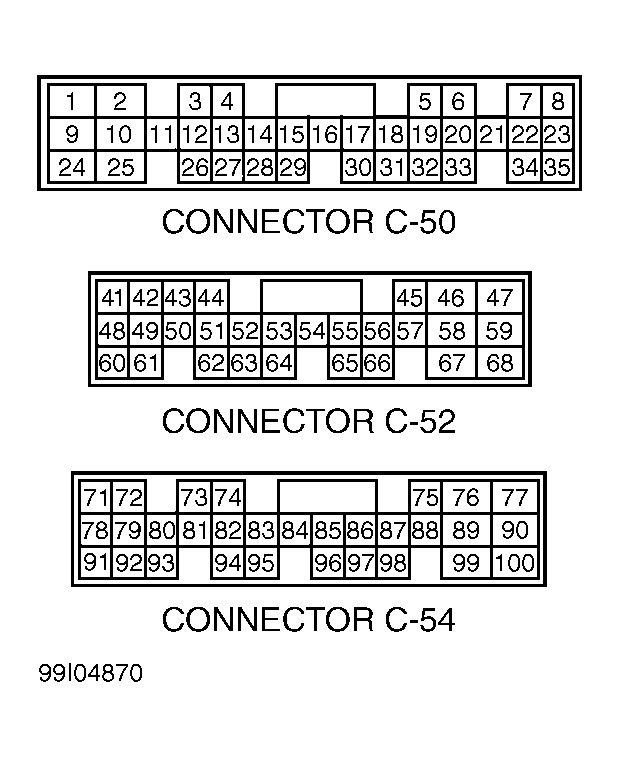

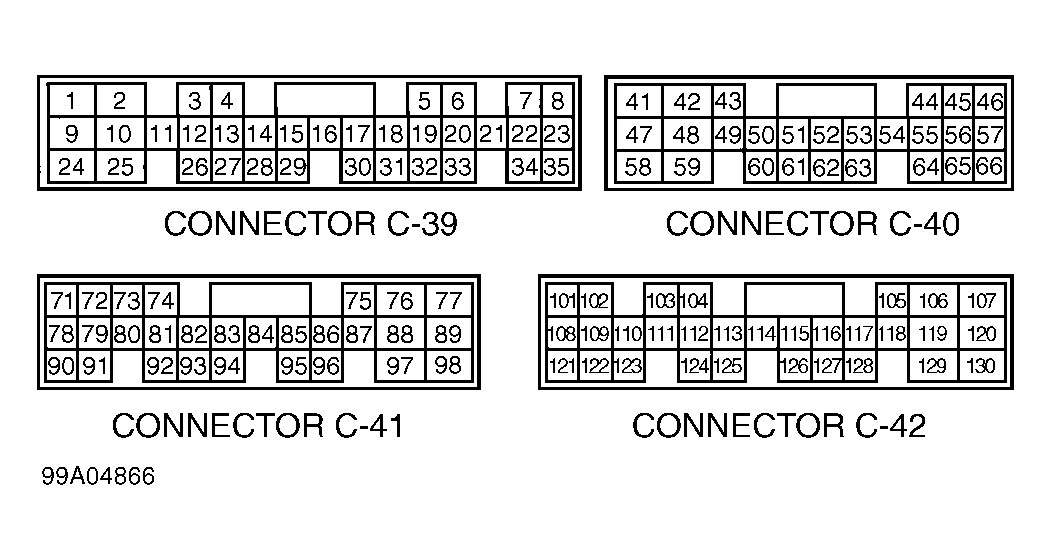

ECM	Fig 12-Fig 17
ECT Sensor	Fig 18-Fig 19
EVAP Purge Solenoid Valve	Fig 20-Fig 22
EVAP Vent Solenoid Valve	Fig 23-Fig 24
Fuel Injector	Fig 25-Fig 31
Fuel Injector Resistor Block	Fig 32
Fuel Pump	Fig 33-Fig 38
Fuel Pump Relay Module	Fig 39
FTDP Sensor	Fig 40
Generator Field	Fig 41-Fig 42
HO2S	Fig 43-Fig 44
IAC Motor	Fig 45-Fig 46
IAT Sensor	Fig 47-Fig 48
Ignition Coil	Fig 49-Fig 56
Ignition Failure Sensor	Fig 57
KS	Fig 58-Fig 60
Leak Detection Pump	Fig 61
MAP Sensor	Fig 62-Fig 63
MDP Sensor	Fig 64
PCM	Fig 65-Fig 67
PNP Switch	Fig 68-Fig 72
Starter Relay	Fig 73-Fig 74
TCM	Fig 75-Fig 78
TP Sensor	Fig 79-Fig 80
VAF Sensor	Fig 81-Fig 82
VIC Valve Position Sensor	Fig 83
VSS	Fig 84-Fig 85
