>> B << Snap Ring Installation

1. Install the thickest snap ring that can be fitted in the snap ring groove of the transfer input gear.
2. Make sure that the transfer input gear bearing end play meets the standard value.

Standard value: 0 - 0.06 mm (0 - 0.002 inch)

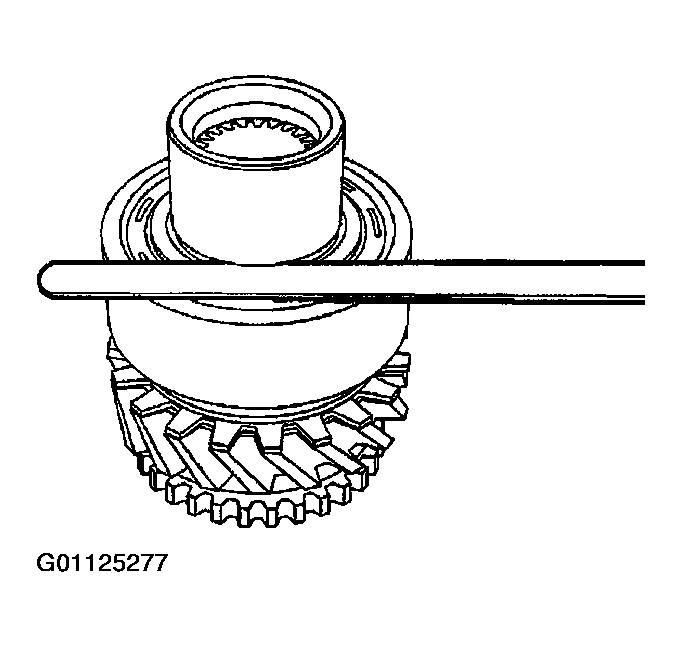

Fig 1: Checking Transfer Input Gear Bearing End Play

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
