>> M << Transfer Case Plate Installation

Face the notched section of the input gears in the direction shown in the illustration.

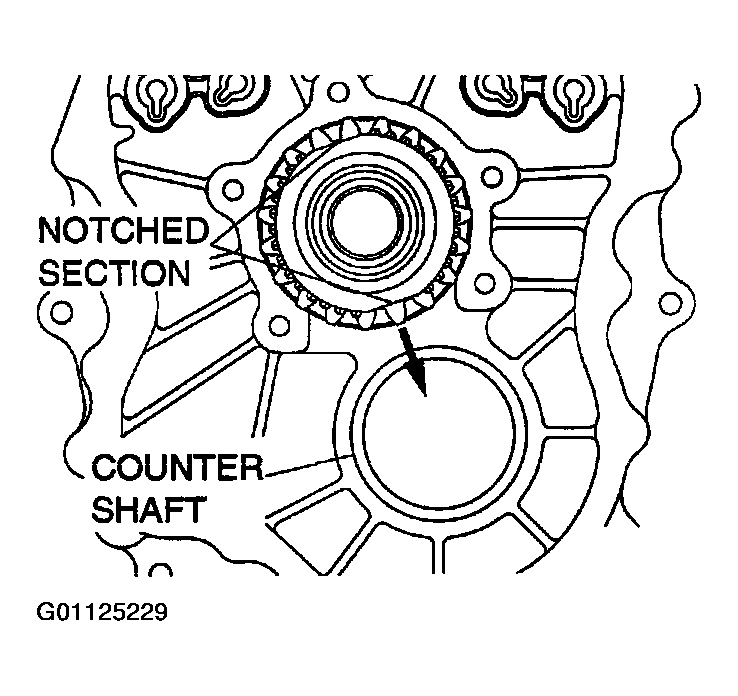

Fig 1: Identifying Notched Section Of Input Gears
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Squeeze the sealant out evenly to apply it in an unbroken, non-excessive quantity.

Apply MITSUBISHI genuine sealant Part number MD997740 or equivalent to the transfer case plate.

CAUTION: The transfer case plate must be installed smooth and straight to get a good seal.

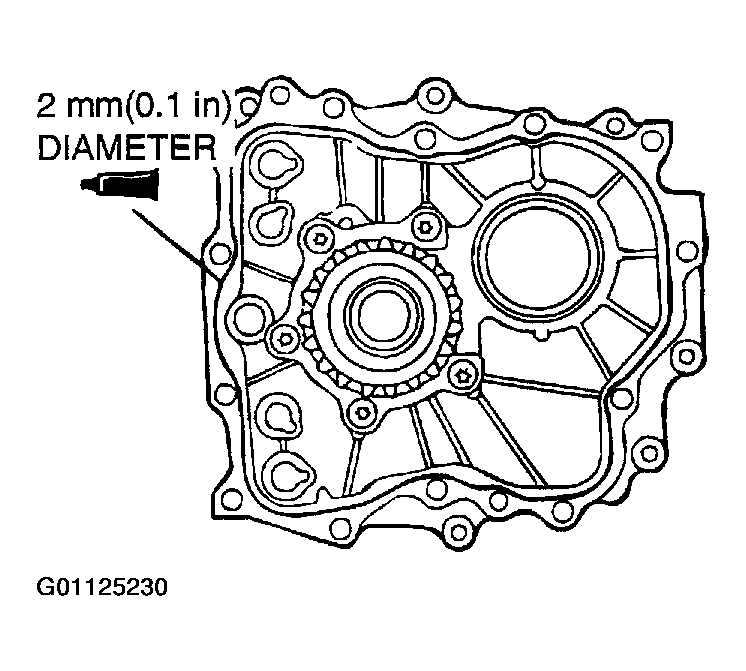

Fig 2: Installing Transfer Case Plate

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Install the transfer case plate together with the input gear. Slide the input gear tooth aligned in step 1 along the tooth space of the countershaft gear.
