>> A << Shift Lock Cable (Selector Lever Side) Installation

  1. Shift the selector lever to "P" position.
  2. Turn the ignition key to "LOCK" (OFF) position.
  3. Fasten the shift lock cable at the position where the end of the shift lock cable is positioned above the red mark.

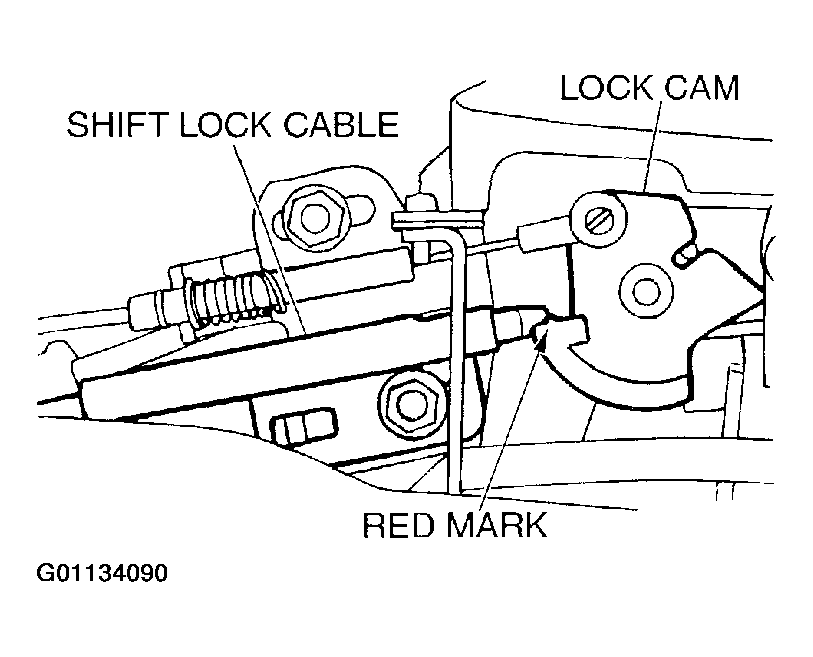

    Fig 1: Installing Shift Lock Cable (Selector Lever Side)
    G01134090Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Check the operation of the selector lever. Refer to SELECTOR LEVER OPERATION CHECK  .
