>> W << 2-4WD Detection Switch/4H Detection Switch/Center Differential Lock Detection Switch/2WD Detection Switch/4LLC Detection Switch Installation

Install with care. Do not make a mistake when locating each switch.

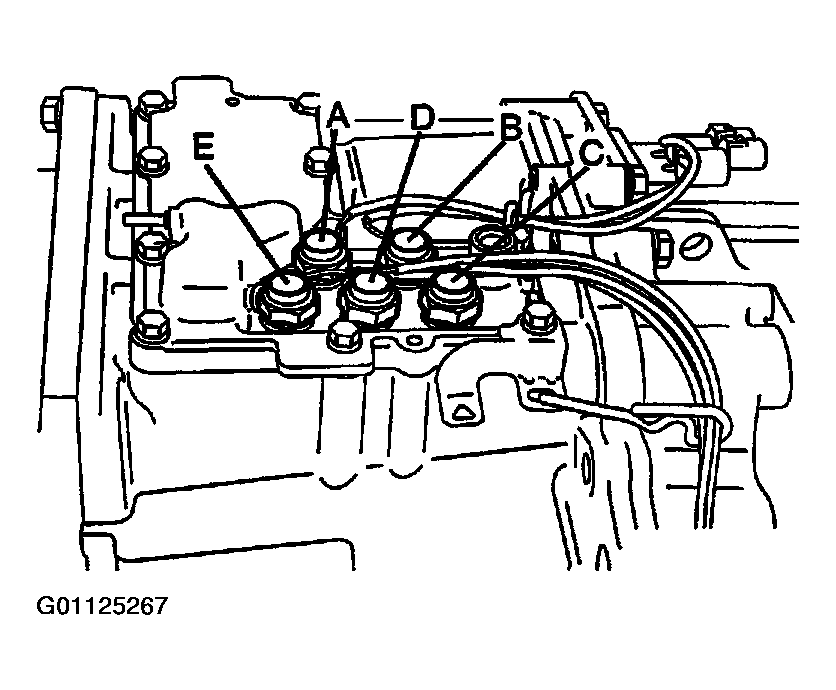

Fig 1: Installing 2-4WD Detection Switch, 4H Detection Switch, Center Differential Lock Detection Switch, 2WD Detection Switch & 4LLC Detection Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

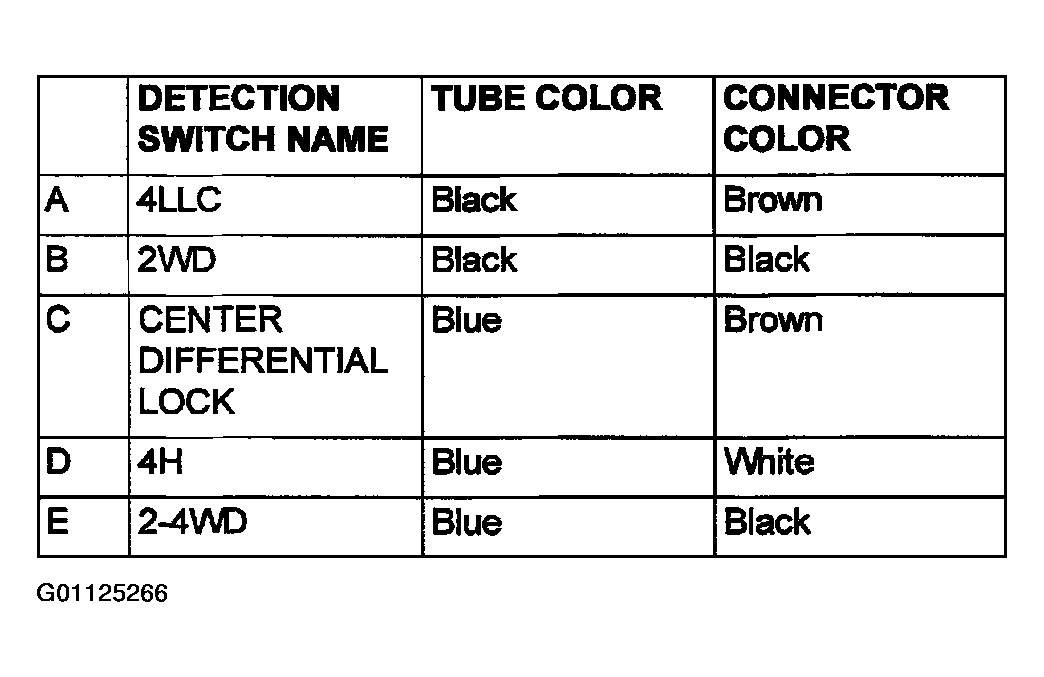

Fig 2: Identifying Switches

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
