>> B << Lock Pin Installation

Install the lock pin so that it will be oriented in the direction shown.

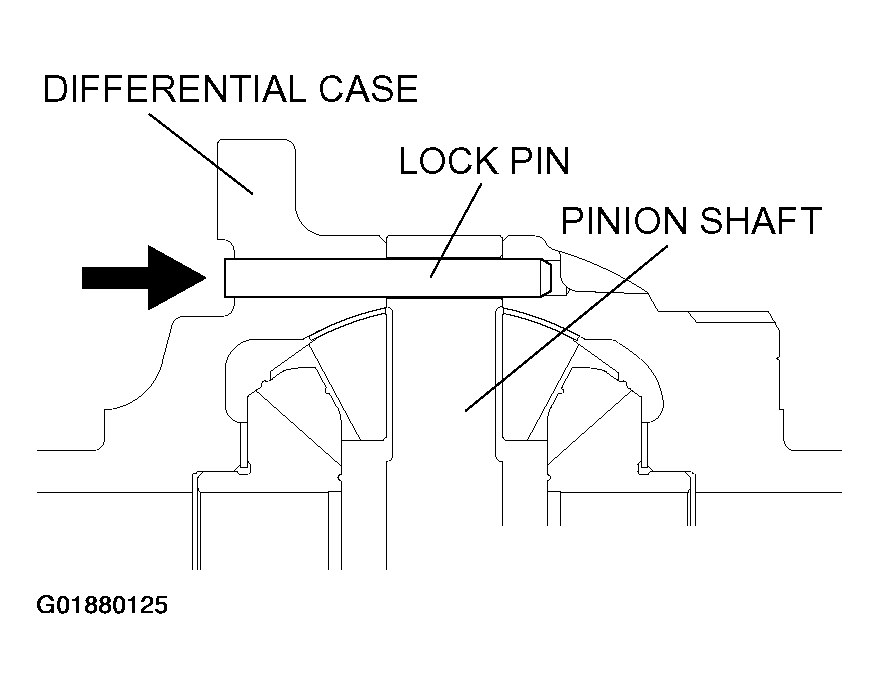

Fig 1: Identifying Direction For Installing Lock Pin
G01880125Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
