Manifold Vacuum Check

WARNING: This page is about a different variant/trim than selected.
  1. Before inspection, check that the engine oil, starter and battery are normal. Also, set the vehicle to the following conditions:
    • Engine coolant temperature: 80 - 95°C (176 - 203°F)
    • Lights, and all accessories: OFF
    • Transaxle: Neutral
  2. Connect an engine tachometer.
  3. Attach a tee-fitting joint to the vacuum hose between the fuel pressure solenoid and the intake manifold plenum, and connect a vacuum gauge.
  4. Start the engine and check that idle speed is within specification. Then check the vacuum gauge reading.
    1. Idle speed: 850 +/- 100 r/min
    2. Minimum limit: 51 kPa (15 in Hg)

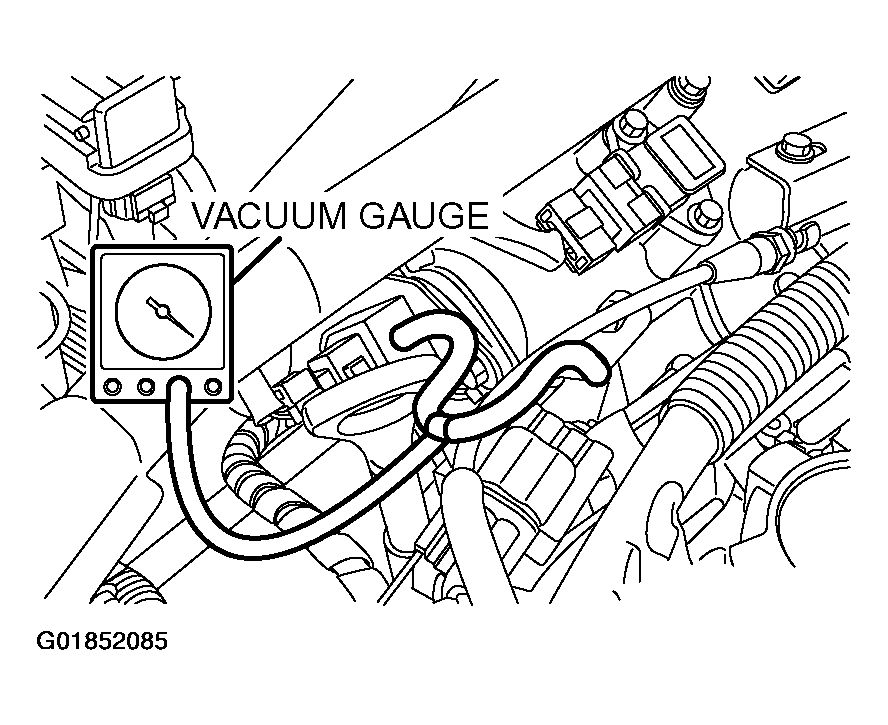

    Fig 1: Measuring Fuel Pressure Solenoid And Intake Manifold Plenum Vacuum
    G01852085Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
