Engine Controls - Hard/No Start/DTC P0335 or P0340 Set
No.: TSB-07-11-001DATE: January, 2007
MODEL: 2002-07 Lancer 2.0L
SUBJECT:
HARD TO START ENGINE DTC P0340 (and P0335)
PURPOSE
The engine may be hard or impossible to start and MFI DTC P0335 and possibly P0340 may be stored due to abnormal wear to the camshaft position sensor support. Oil grooves have been added to the camshaft position sensor support to improve lubrication.
If a customer has a vehicle with the above condition, replace the camshaft position sensor support with the new part listed in the PARTS INFORMATION section of this bulletin.
AFFECTED VEHICLES
2002-07 Lancer 2.0L
PROCEDURE

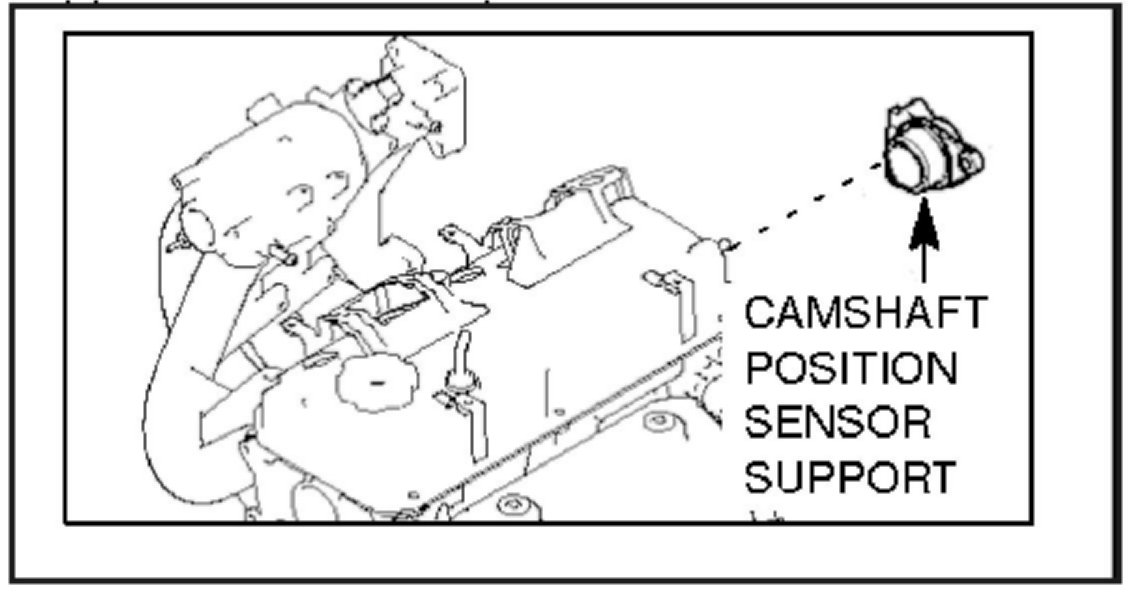

Replace the camshaft position sensor support as described in Group 11B, GENERATOR AND IGNITION SYSTEM REMOVAL AND INSTALLATION, of the appropriate service manual.
IMPORTANT!
Carefully remove all debris from the end of the camshaft position sensor before reinstalling it.

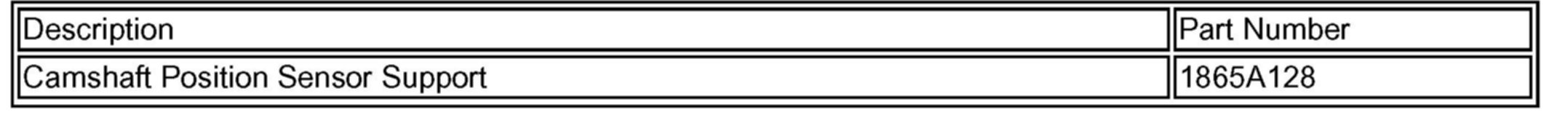

PARTS INFORMATION
Use the genuine Mitsubishi Part shown.

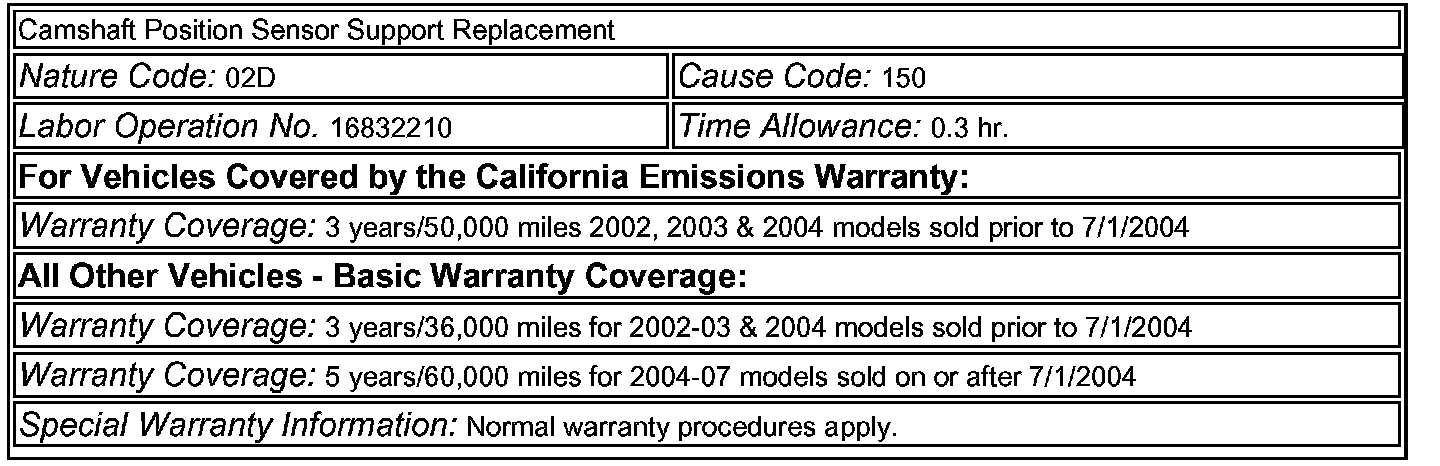

WARRANTY INFORMATION
