Removal & Installation (Lancer)

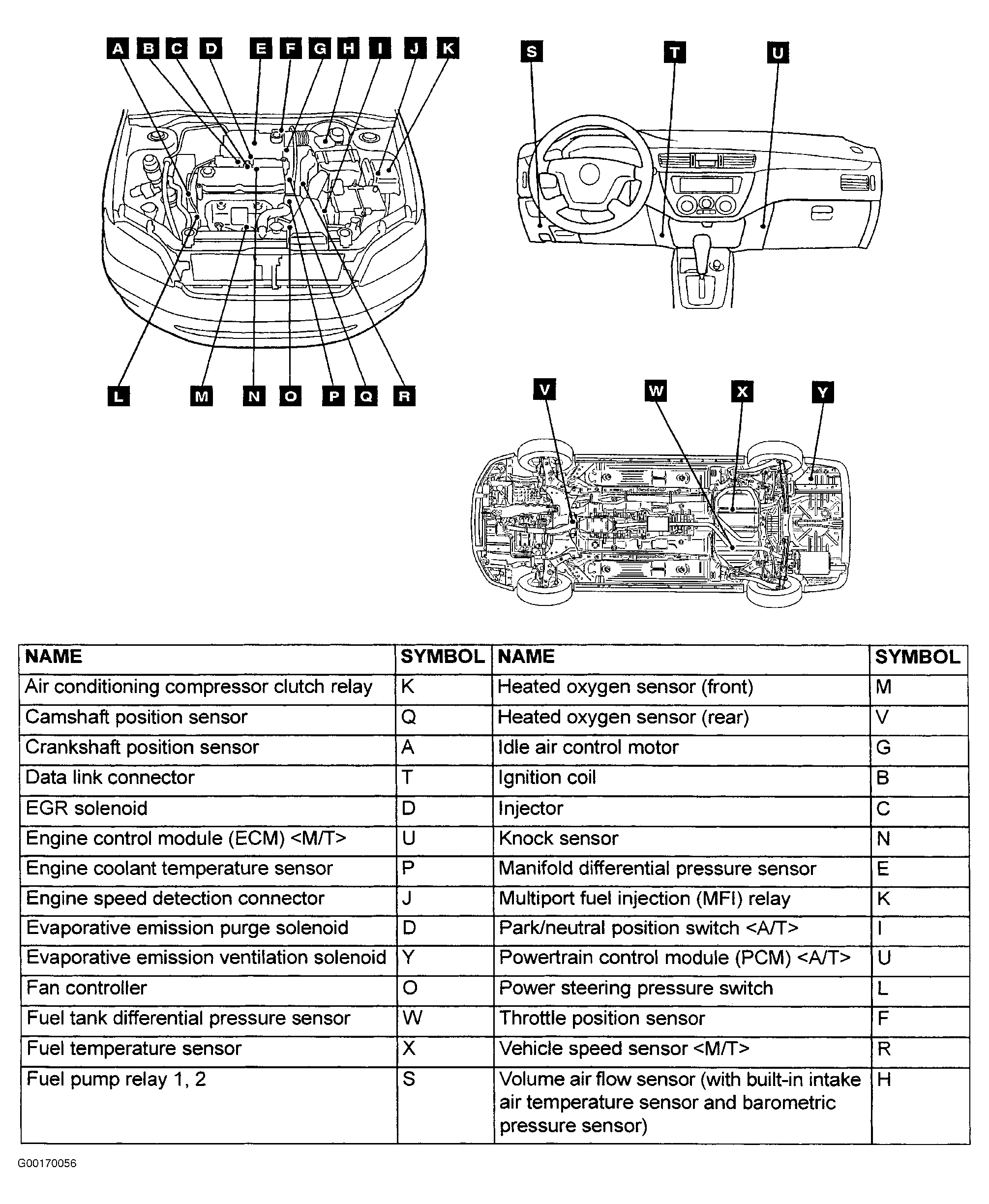

Powertrain Control Module (PCM) is located under center of instrument panel, behind glove box door. See Figure. To remove and install PCM, see Fig 1.

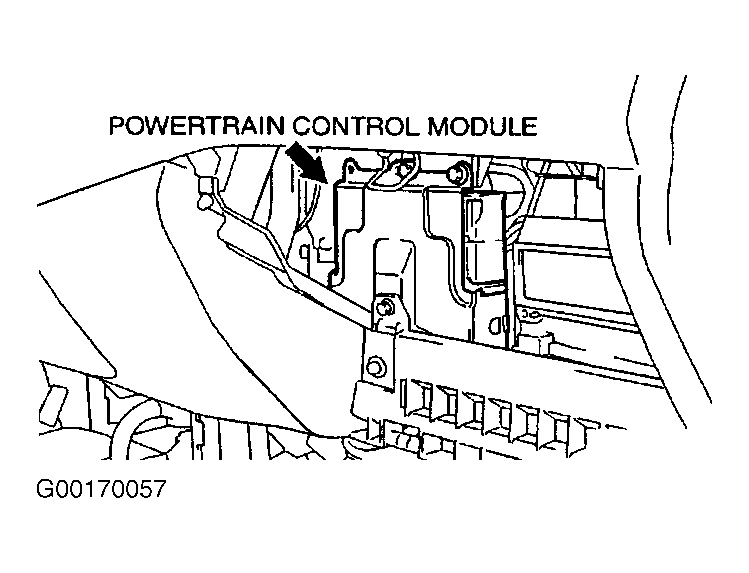

Fig 1: Removing Powertrain Control Module (Lancer)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
