Removal & Installation
WARNING: This page is about a different car, the 2003 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.
- Remove engine under cover rear assembly.

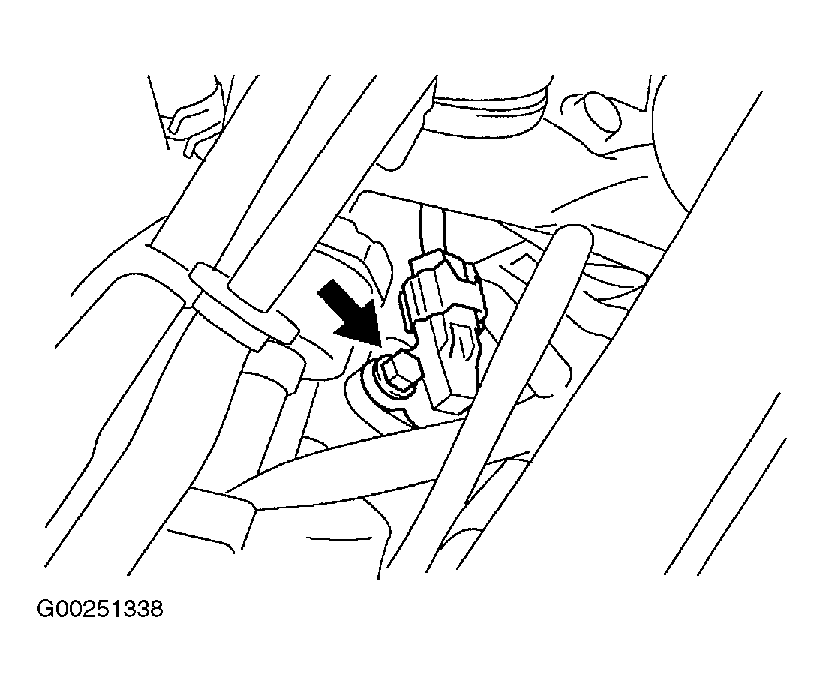

- Disconnect crankshaft position sensor connector. Remove bolt and crankshaft position sensor. See Fig 1.
- To install, reverse removal procedure. Tighten bolt to specification. See TORQUE SPECIFICATIONS .
