Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

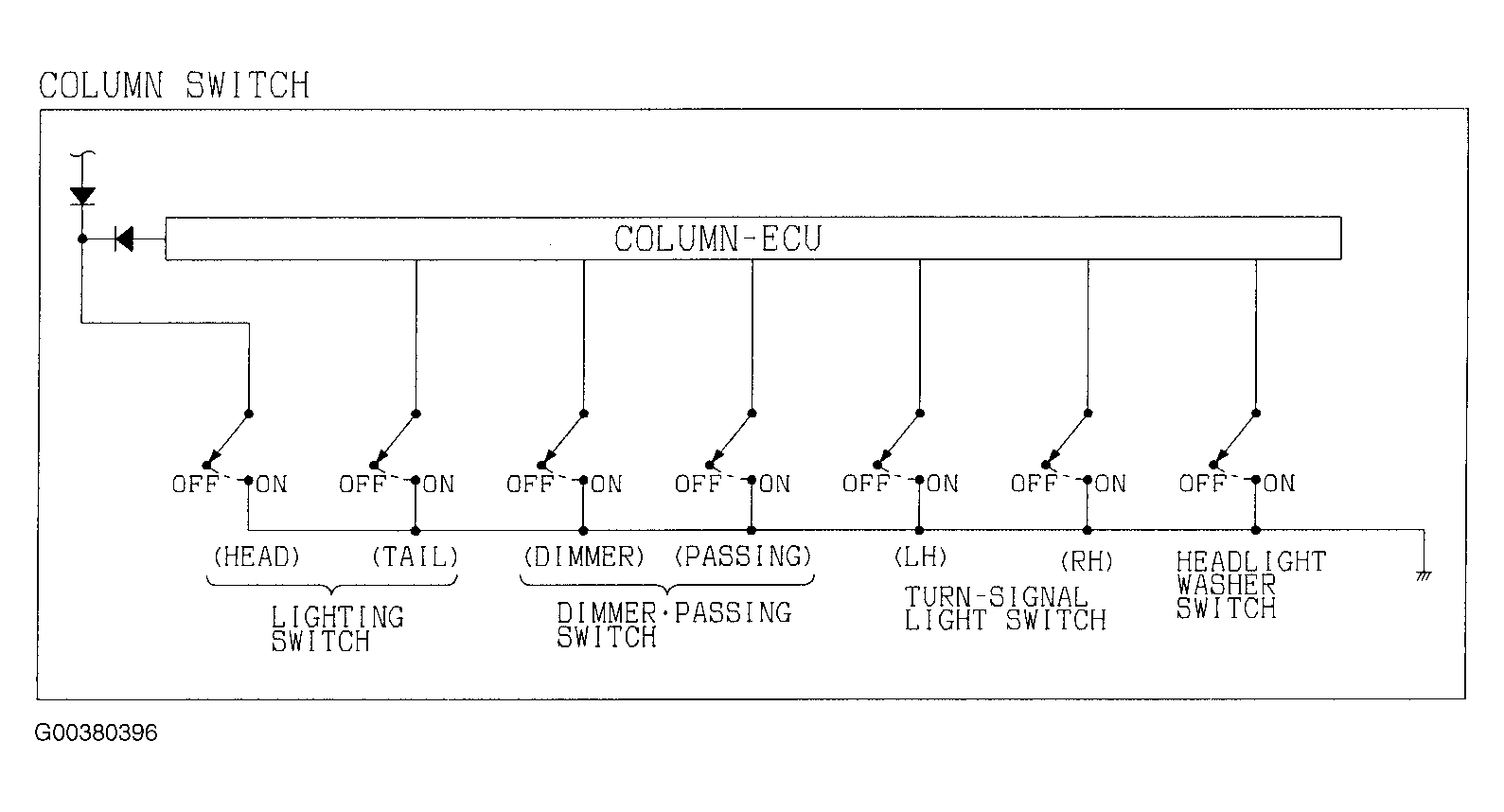

Fig 1: Turn-Signal Light & Lighting Switch Input Circuit Diagram
G00380396Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
