Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

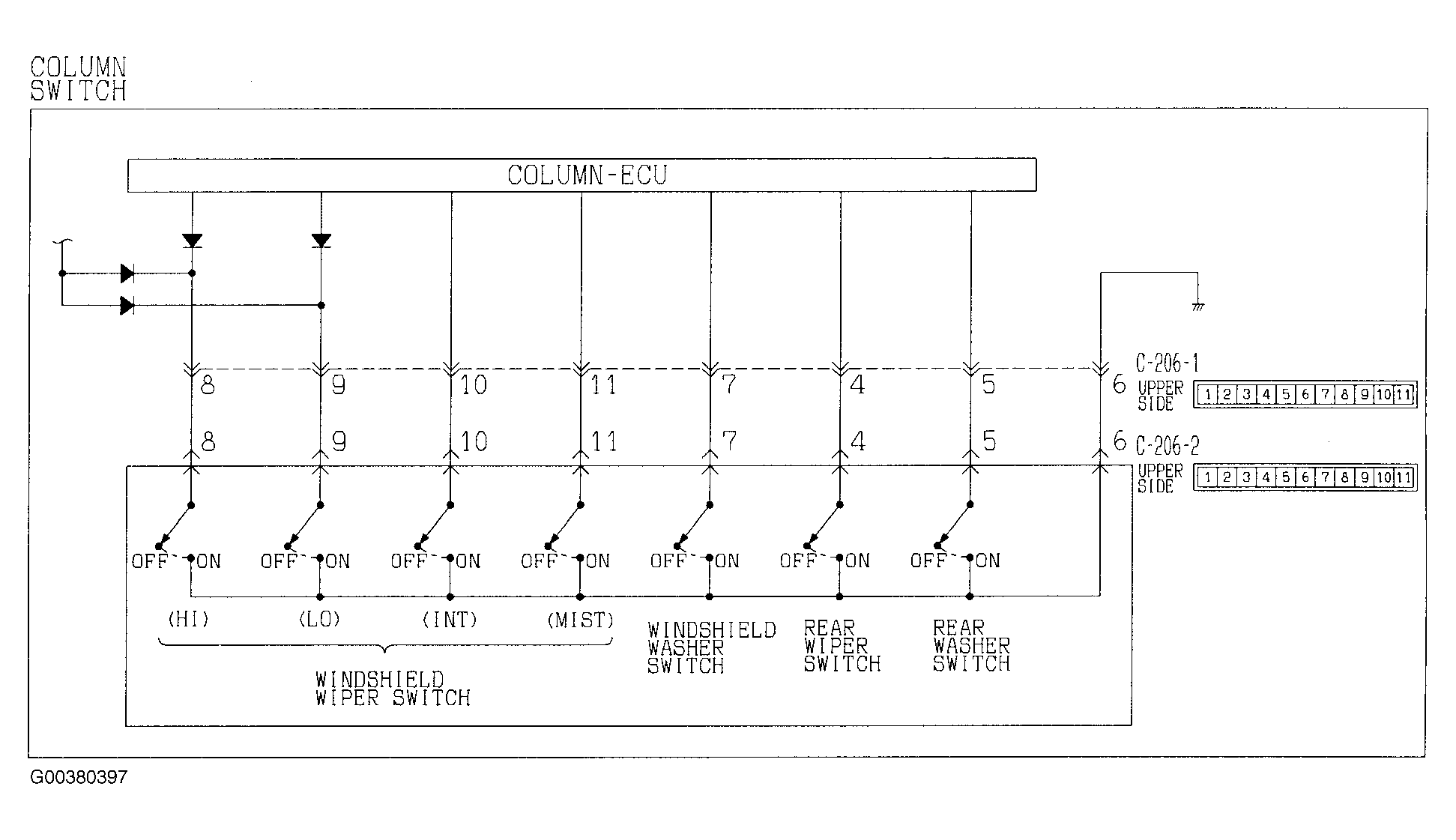

Fig 1: Windshield Wiper & Washer Switch Input Circuit Diagram
G00380397Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
