Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

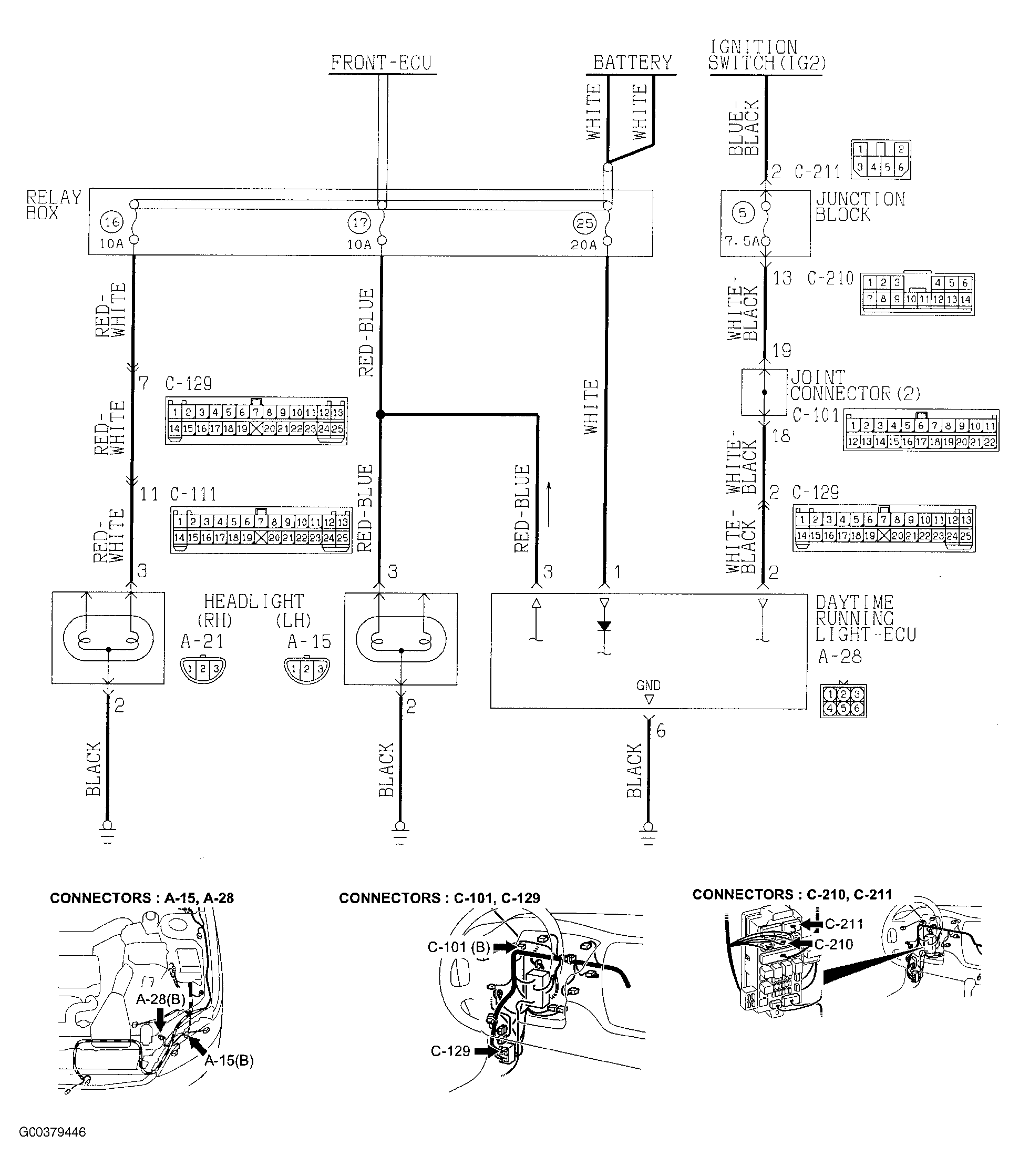

Fig 1: Daytime Running Light Circuit Diagram & Connector Identification
G00379446Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
