DTC 15: Transmission Fluid Temperature Sensor System (Open Circuit): Notes

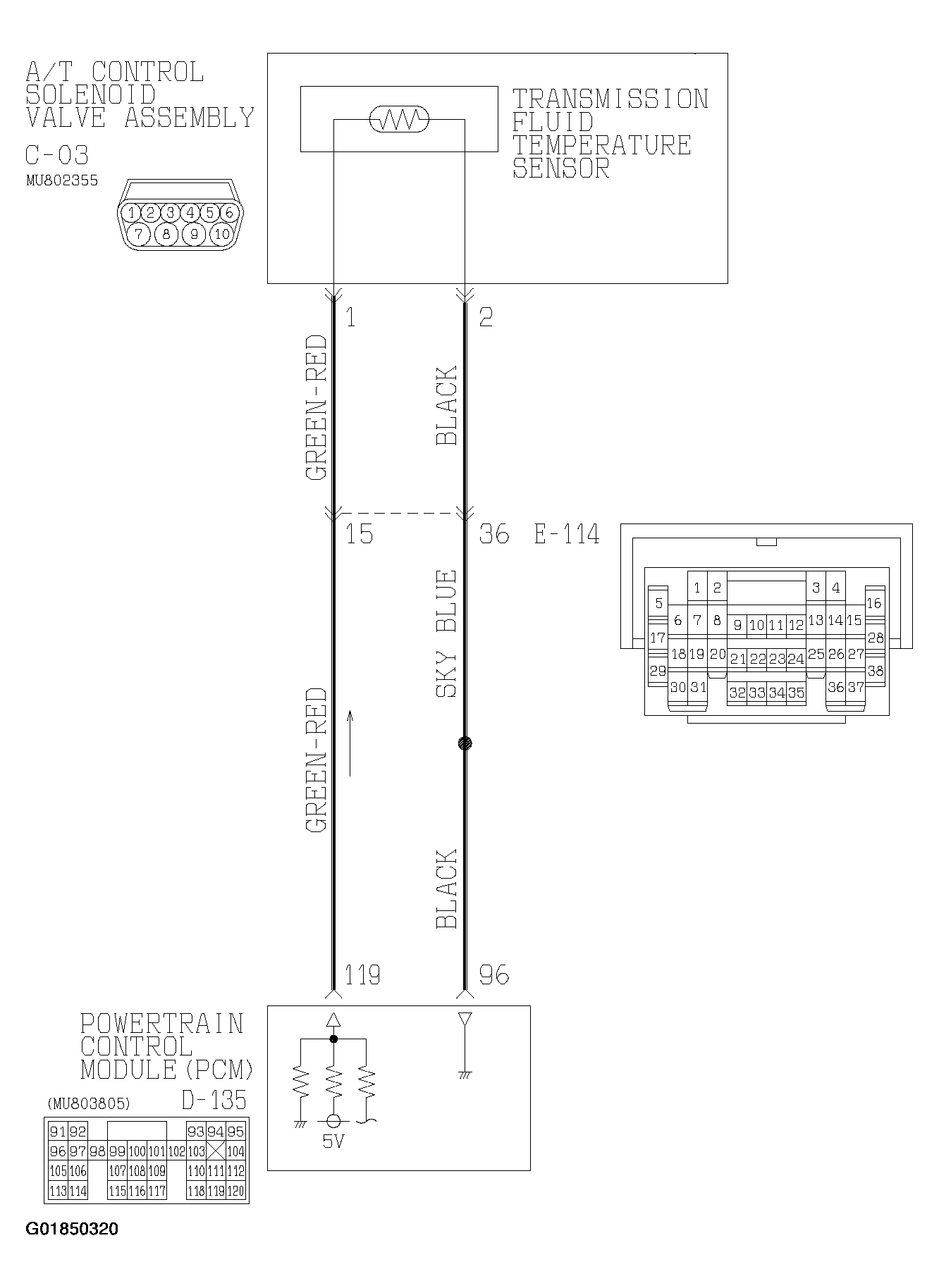

Fig 1: Transmission Fluid Temperature Sensor System Circuit Diagram (1 Of 2)
G01850320Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

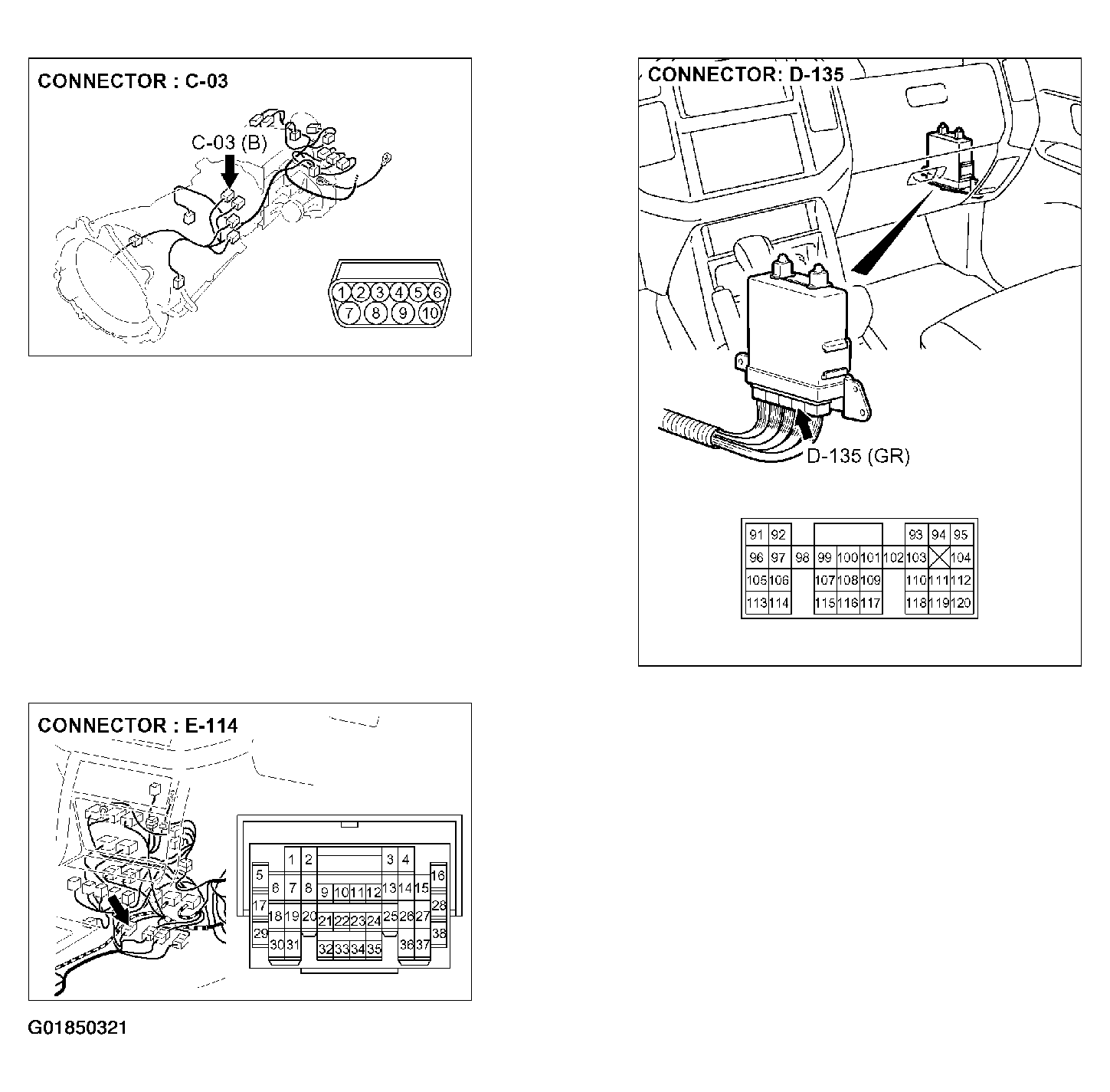

Fig 2: Transmission Fluid Temperature Sensor System Circuit Diagram (2 Of 2)
G01850321Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
