DTC 22: Input Shaft Speed Sensor System: Notes

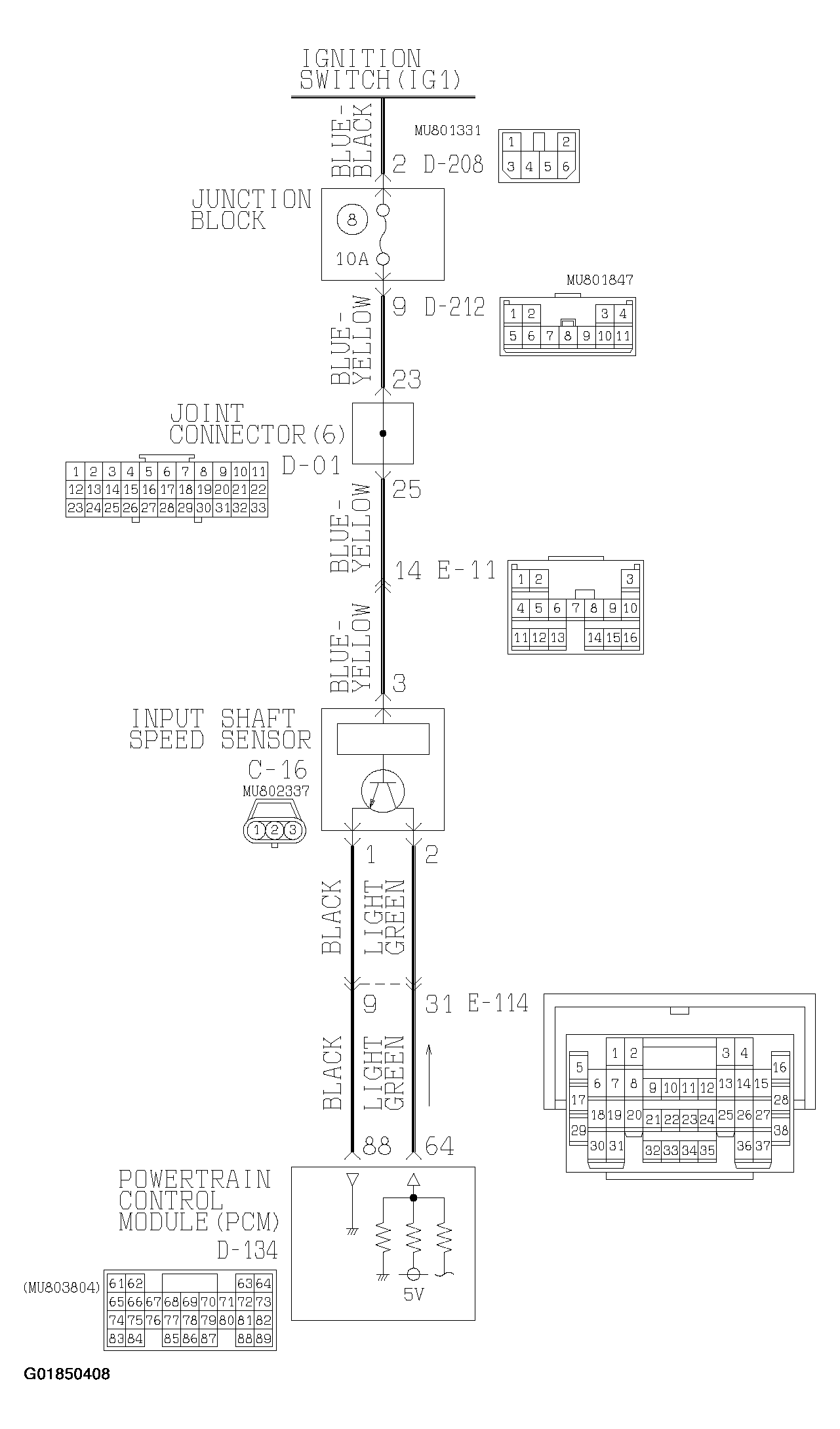

Fig 1: Input Shaft Speed Sensor System Circuit Diagram (1 Of 3)
G01850408Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

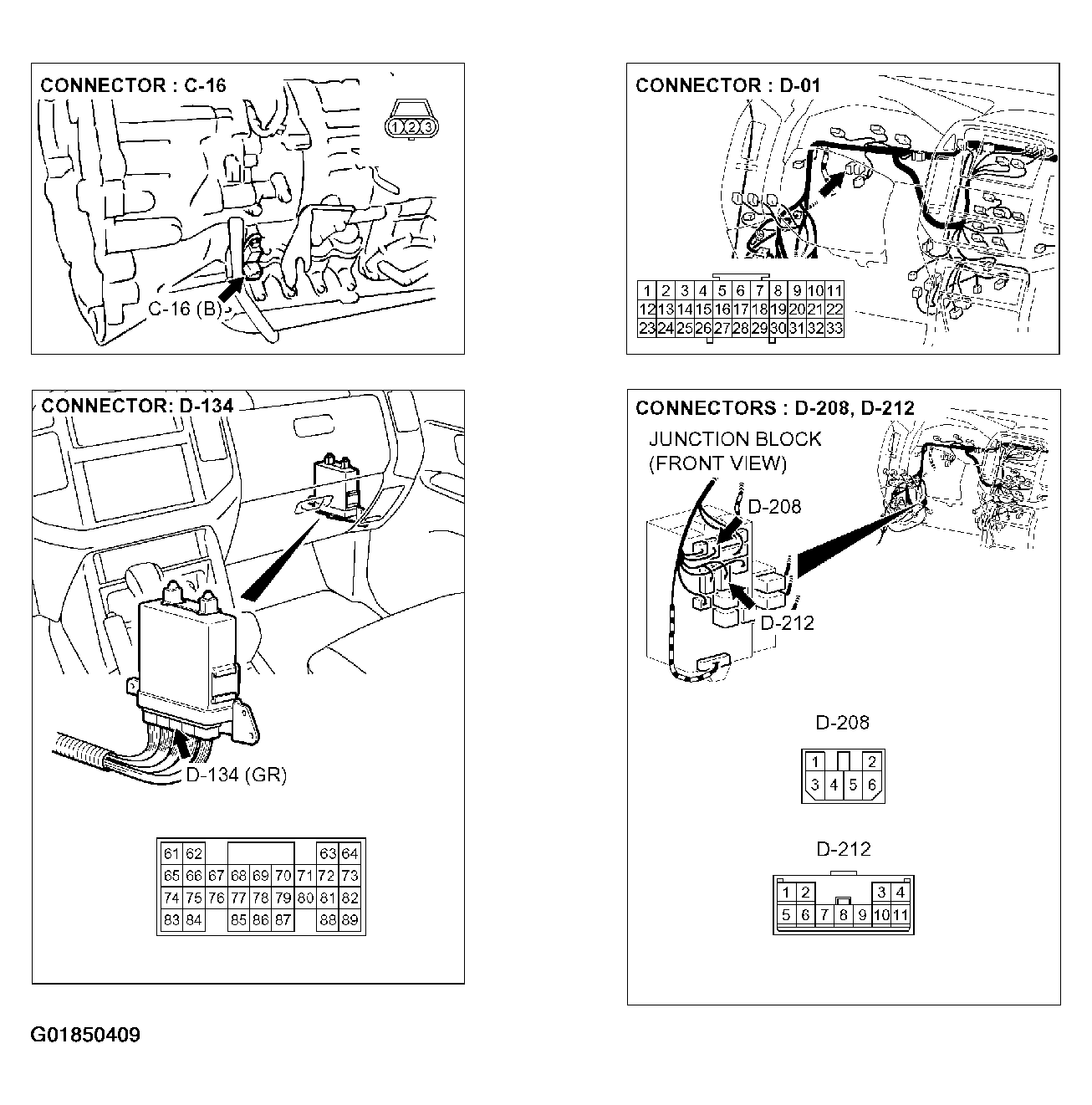

Fig 2: Input Shaft Speed Sensor System Circuit Diagram (2 Of 3)
G01850409Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

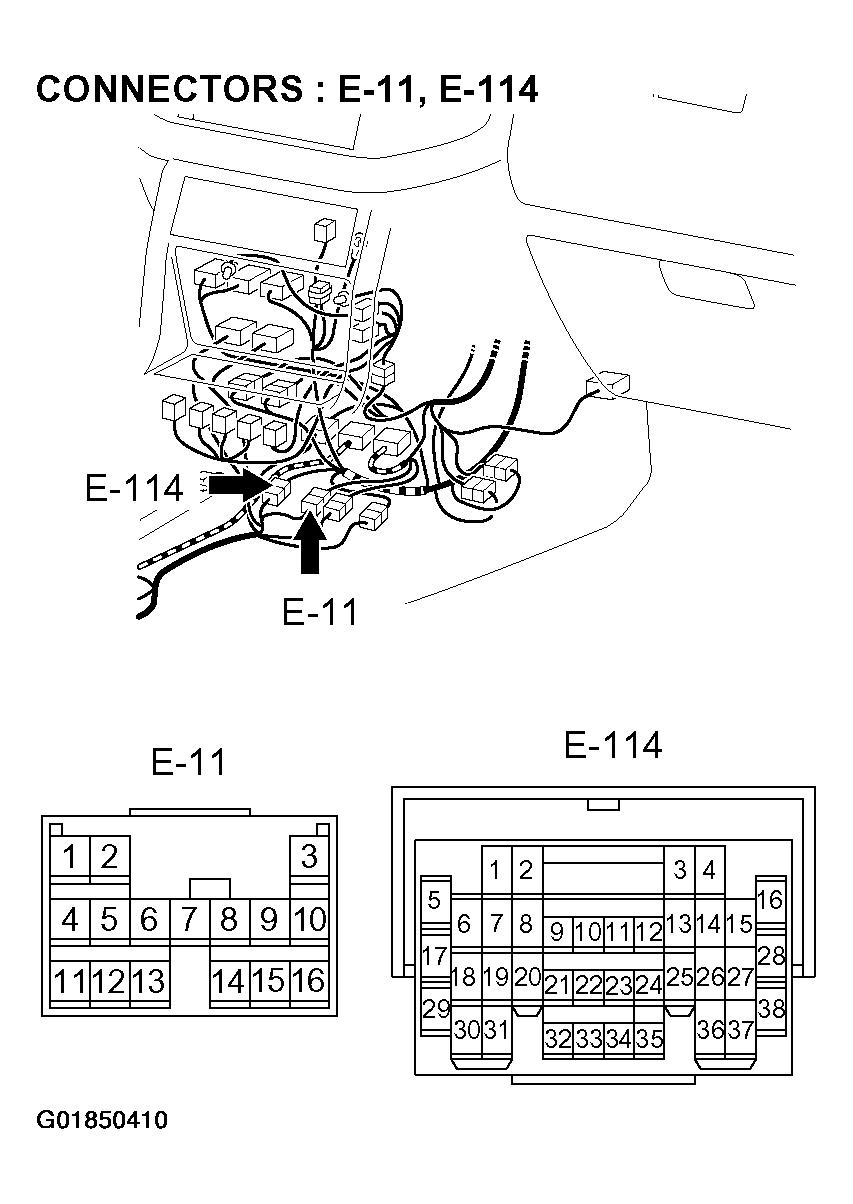

Fig 3: Input Shaft Speed Sensor System Circuit Diagram (3 Of 3)
G01850410Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
