Diagnostic Trouble Code Procedures <Automatic Transmission>
>>
DTC 27: Transmission Range Switch System (Open Circuit)
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC 27: Transmission Range Switch System (Open Circuit): Notes
Fig 1: Transmission Range Switch System Circuit Diagram (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

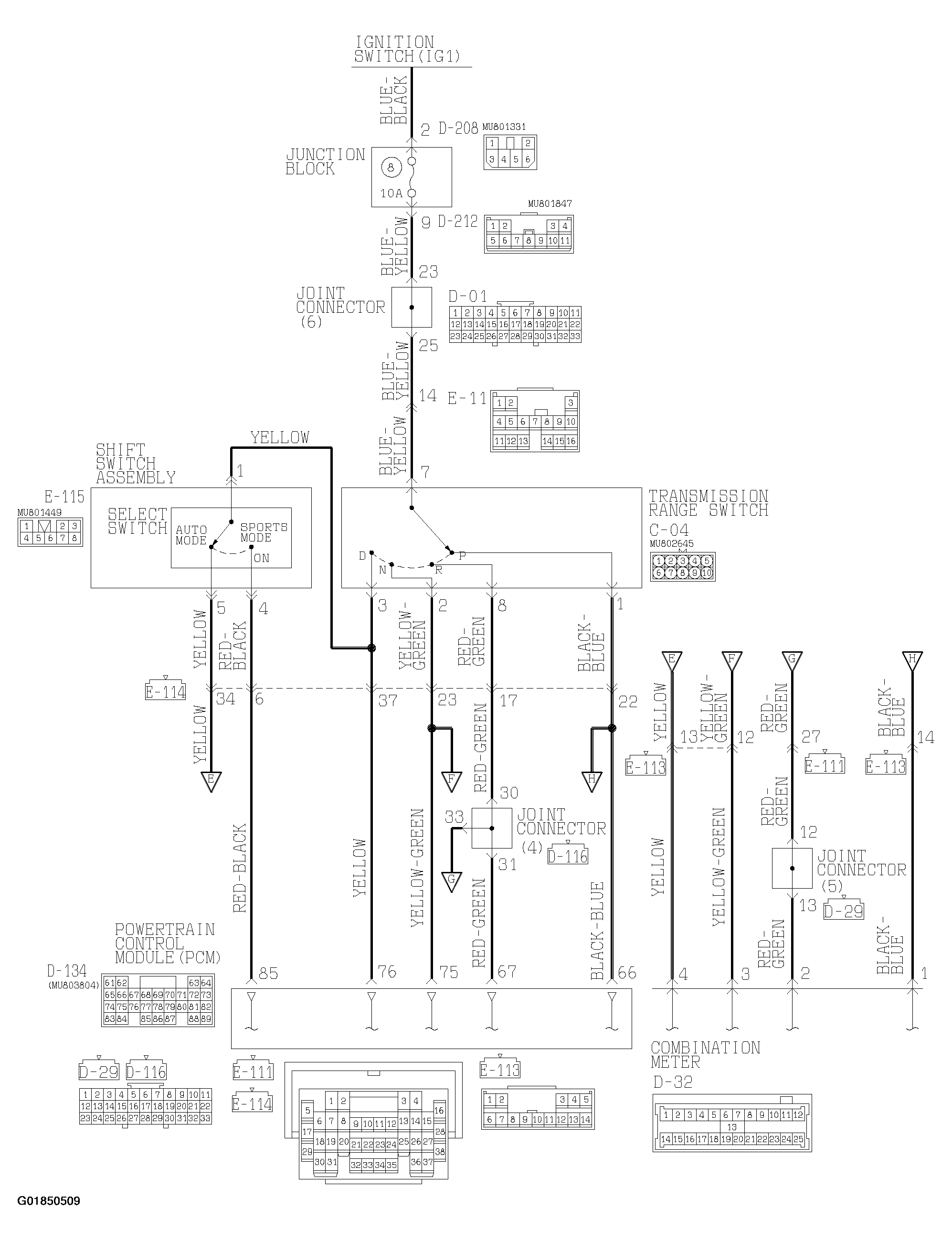

Fig 2: Transmission Range Switch System Circuit Diagram (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 3: Transmission Range Switch System Circuit Diagram (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
