Spark Plug Cable Resistance Check

Measure the resistance of the all spark plug leads.

  1. Check the cap and coating for cracks.
  2. Measure the resistance.

    Limit: 19 kΩ

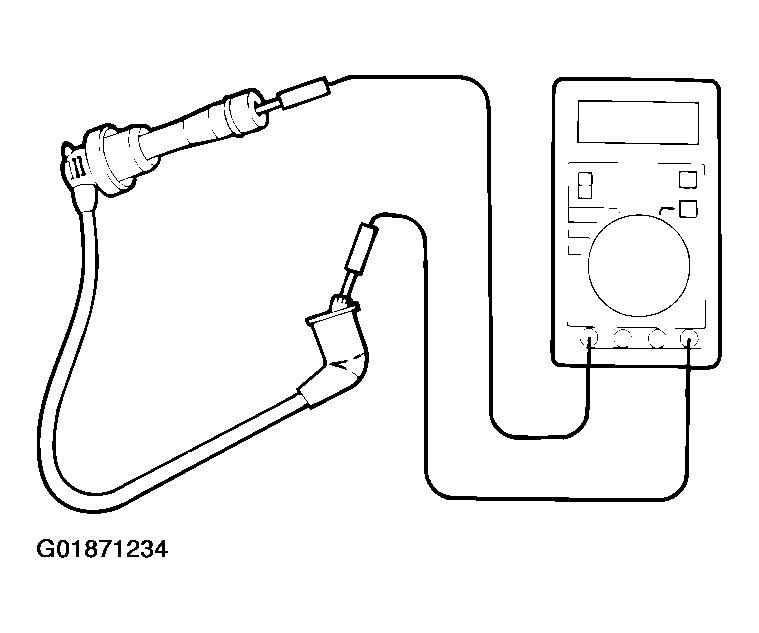

    Fig 1: Measuring Resistance Of All Spark Plug Leads
    G01871234Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
