Power Steering Gear Box Assembly: Disassembly: Notes

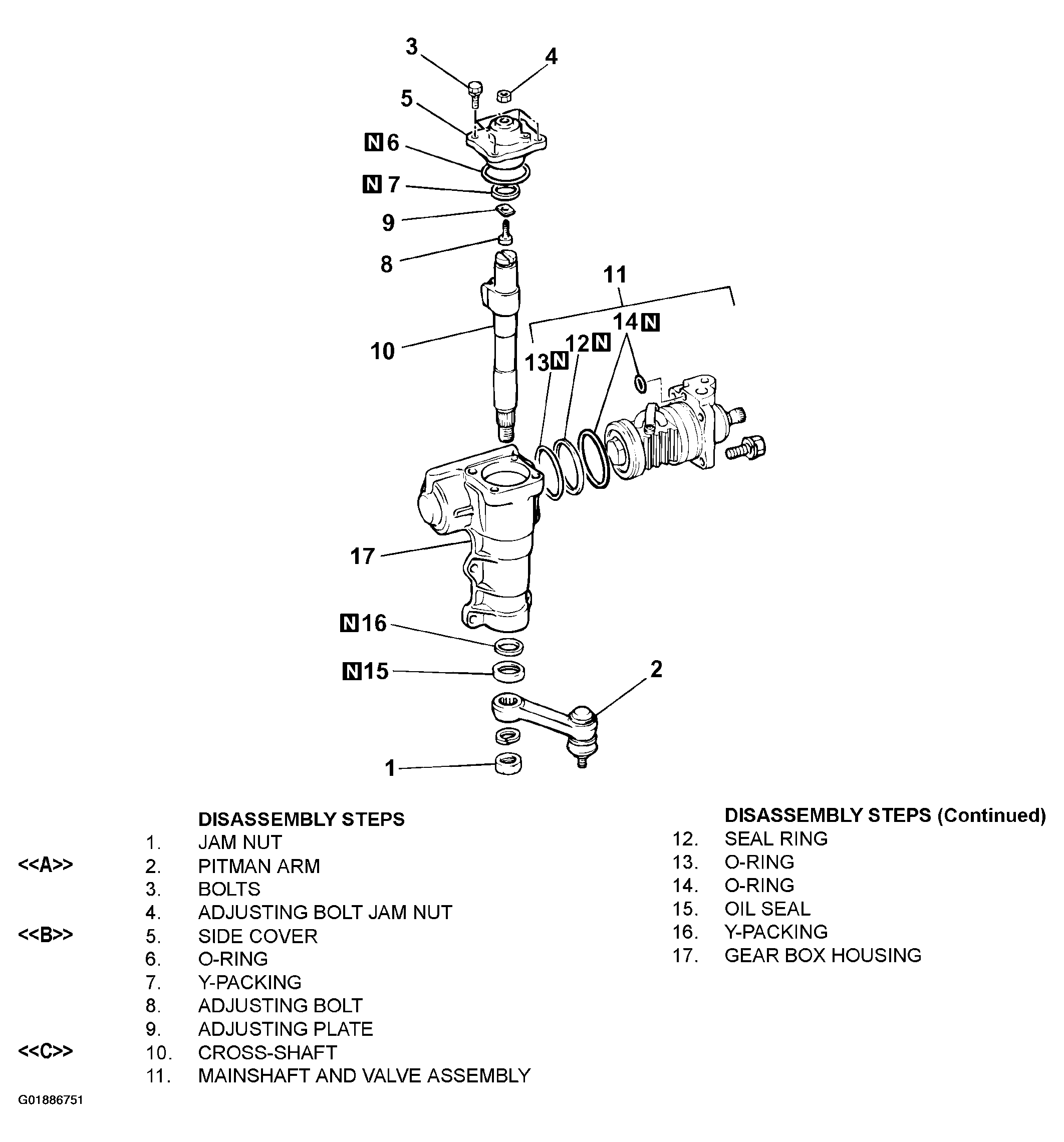

Fig 1: Disassembling Power Steering Gear Box Assembly
G01886751Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
