Disassembly And Assembly: Notes

CAUTION: Do not disassemble the pressure switch assembly and valve subassembly.

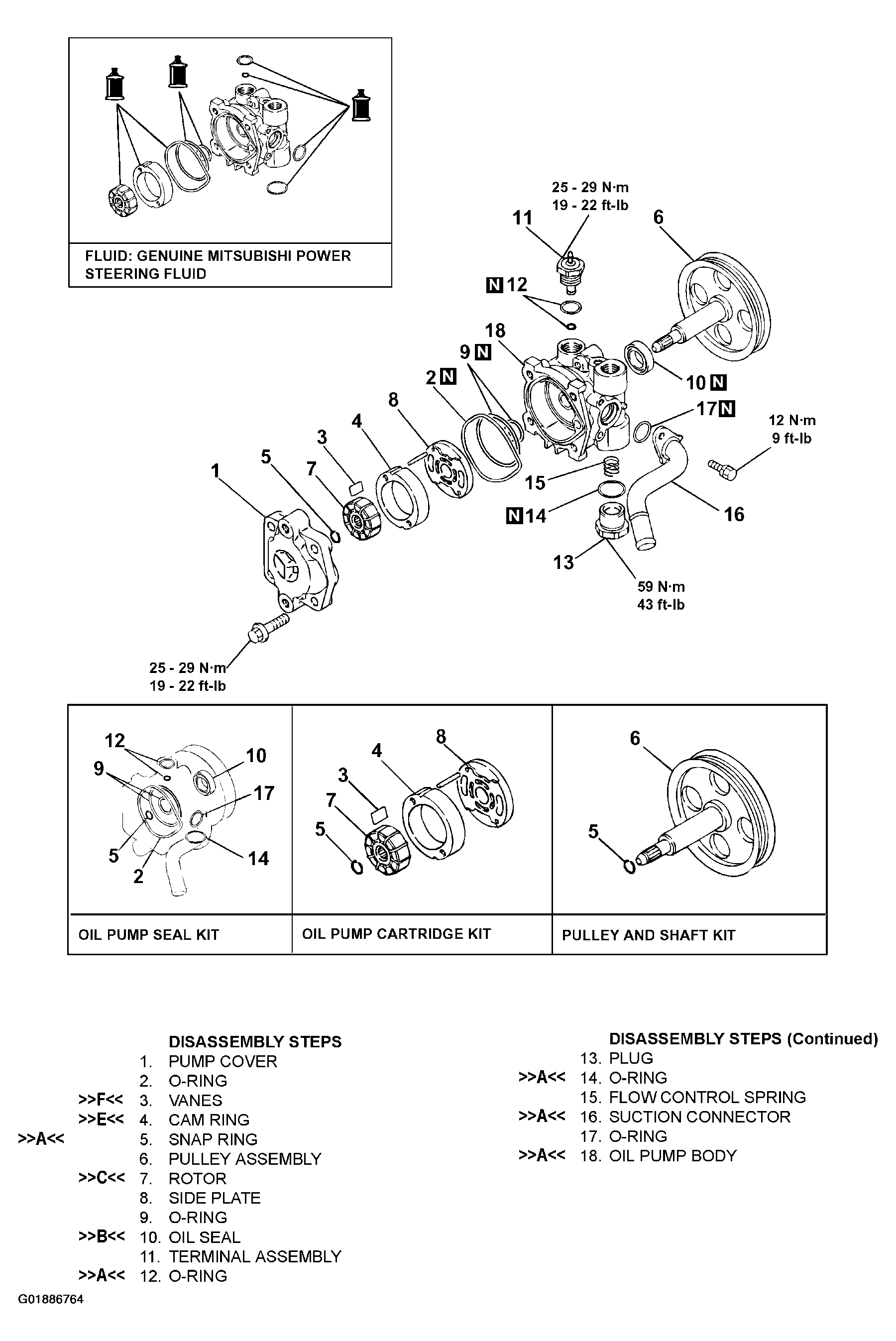

Fig 1: Disassembling And Assembling Power Steering Oil Pump Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
