Disassembly And Assembly: Notes

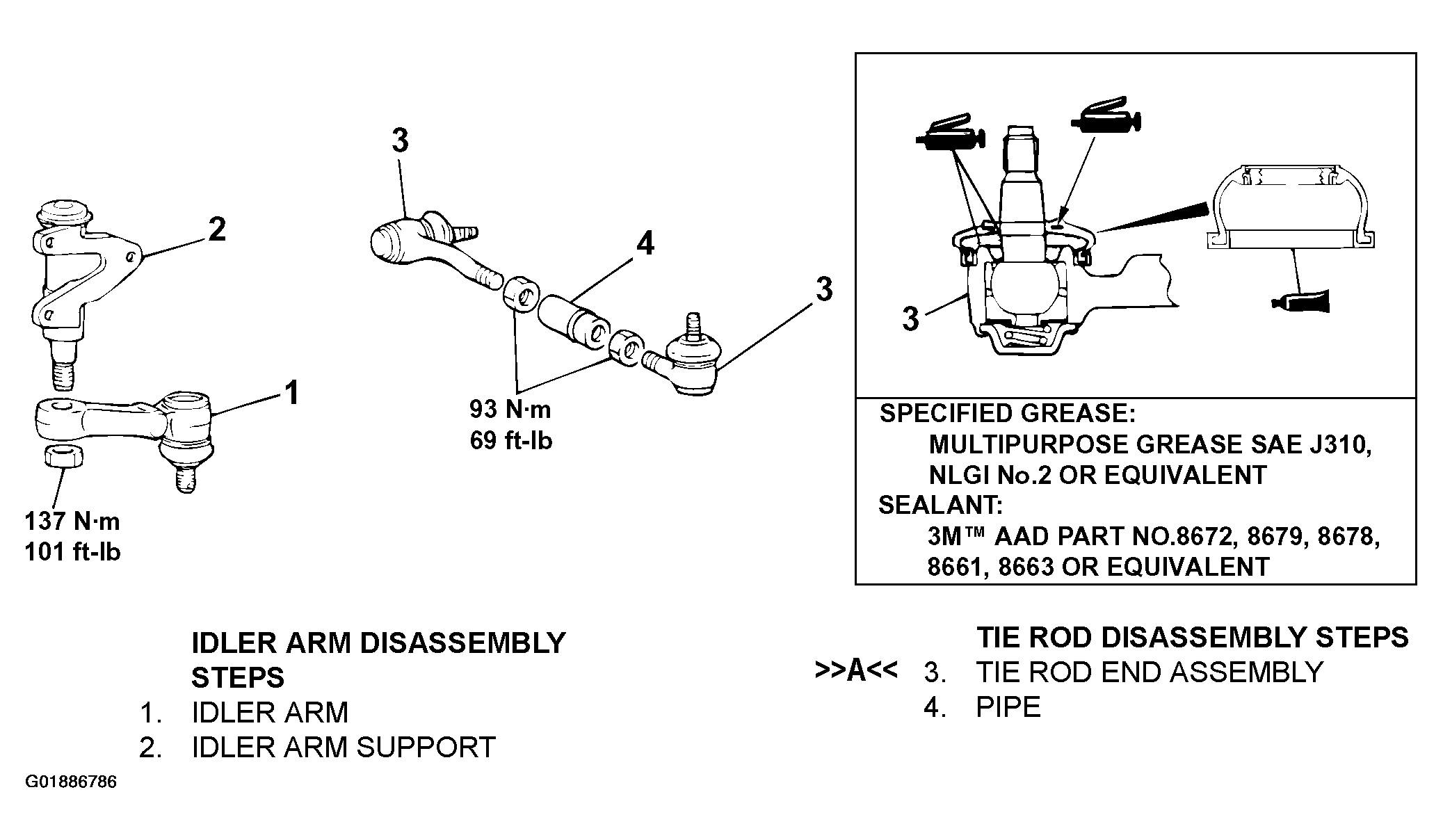

Fig 1: Disassembling And Assembling Steering Linkage
G01886786Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
